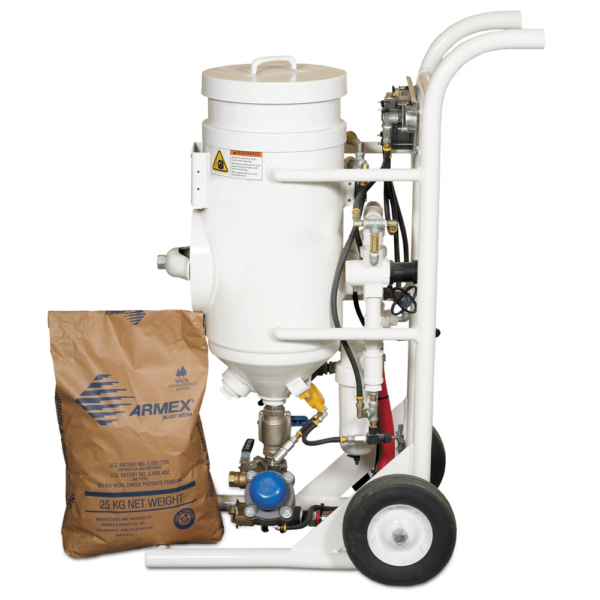

Schmidt® Multi-Media Industrial Soda Blaster

Sku: P-ARM

Built for tradesmen who demand adaptability and control on the job, the Schmidt® M-Series Multi-Media Blasters let you switch media types on the fly. Whether you’re stripping heavy rust with steel grit or cleaning sensitive surfaces with soda, this ultimate in versatility series gives you one setup that handles it all. Choose from the TeraValve XL or the Thompson II for precise metering.

Each model includes built-in blast and tank pressure regulators for dialing in blast performance. The media vibrator helps push light media through smoothly. For hard jobs, the M-21 and M-31 offer full-port bypass capability—extra power when you need it. Maintenance is straightforward with a media shutoff valve and quick-access metering system. The entire line now comes standard with the G3 Trigger Deadman system and Compact BAABS—boosting safety, responsiveness, and ease of control.

Model Weights & Dimensions:

• Mini  – 90 lbs | 36 5/16" H x 14.5" W x 18.5" L
• M-11 – 186 lbs | 48" H x 22" W x 33" L
• M-21  – 294 lbs | 50" H x 24" W x 33" L
• M-31  – 307 lbs | 56" H x 24" W x 33" L

Frequently Asked Questions:

Q: What types of abrasives can I use with the M-Series?

A: Everything from soda, crushed glass, and garnet to steel grit, aluminum oxide, and glass beads. The M-Series is so much more than a soda blaster!

Q: What valves and plumbing are included?

A: The  plumbing used in the M-Series are:

• Mini:   ¾" plumbing
• M11 1.5cf:   1" plumbing
• M21 2.0cf:   1-¼" plumbing
• M31 3.0cf:   1-¼" plumbing
• Any model can be ordered with either the legendary Thompson II or the latest TeraValve XL metering valve.  Both of these valves include tungsten-carbide slotted sleeves.

Q: Is the deadman system up to date?

A: Yes, all M-Series models now come with the G3 Trigger Deadman system and Compact BAABS for faster response and better safety. Both pneumatic and electric controls are available.

Q: Which models include full-port bypass?

A: The M-21 and M-31 include full-port bypass for high-pressure blasting. The Mini and M-11 do not.

Q:  What comes standard with a new M-Series unit?

A: The M11, M21 and M31 come with the following:

• G3 Trigger Deadman w/Compact BAABS and 55' control line
• 55' water line with wet blast attachment
• Integrated load-skid along with wheels for versatile portability
• (Blast hose and nozzle are available separately)

A: The Mini Multi-Media blaster comes with:

• G3 Trigger Deadman w/Compact BAABS & 25' control line
• 25' blast hose (¾" ID)
• 3/16" Silicon Nitride nozzle
• 25' water line with wet blast attachment
• Drop-in 3/32" screen

Q: Can I run just air without abrasive?

A: This is optionally available to add remote abrasive cutoff for clean-up and blow-down work.
