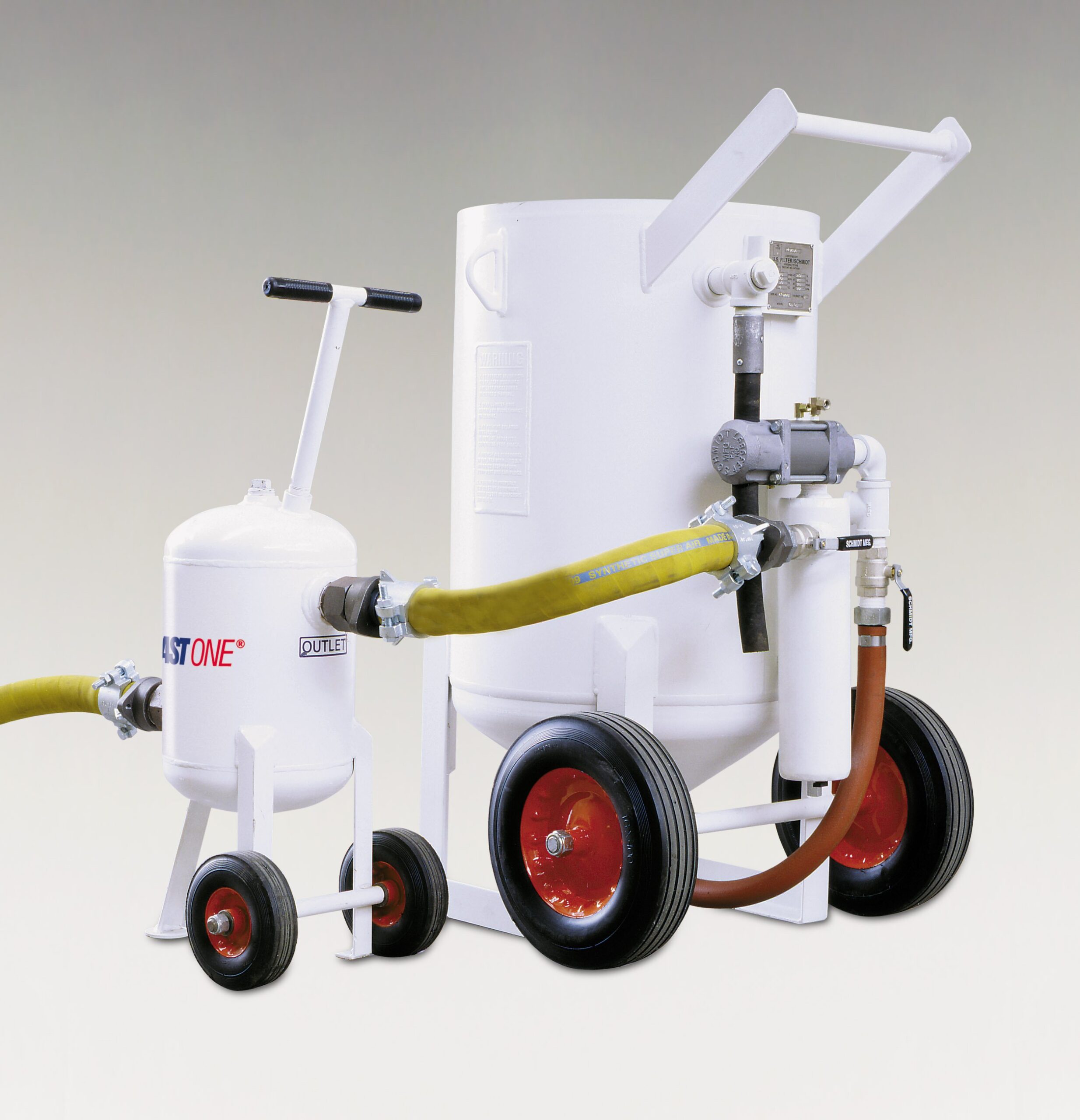

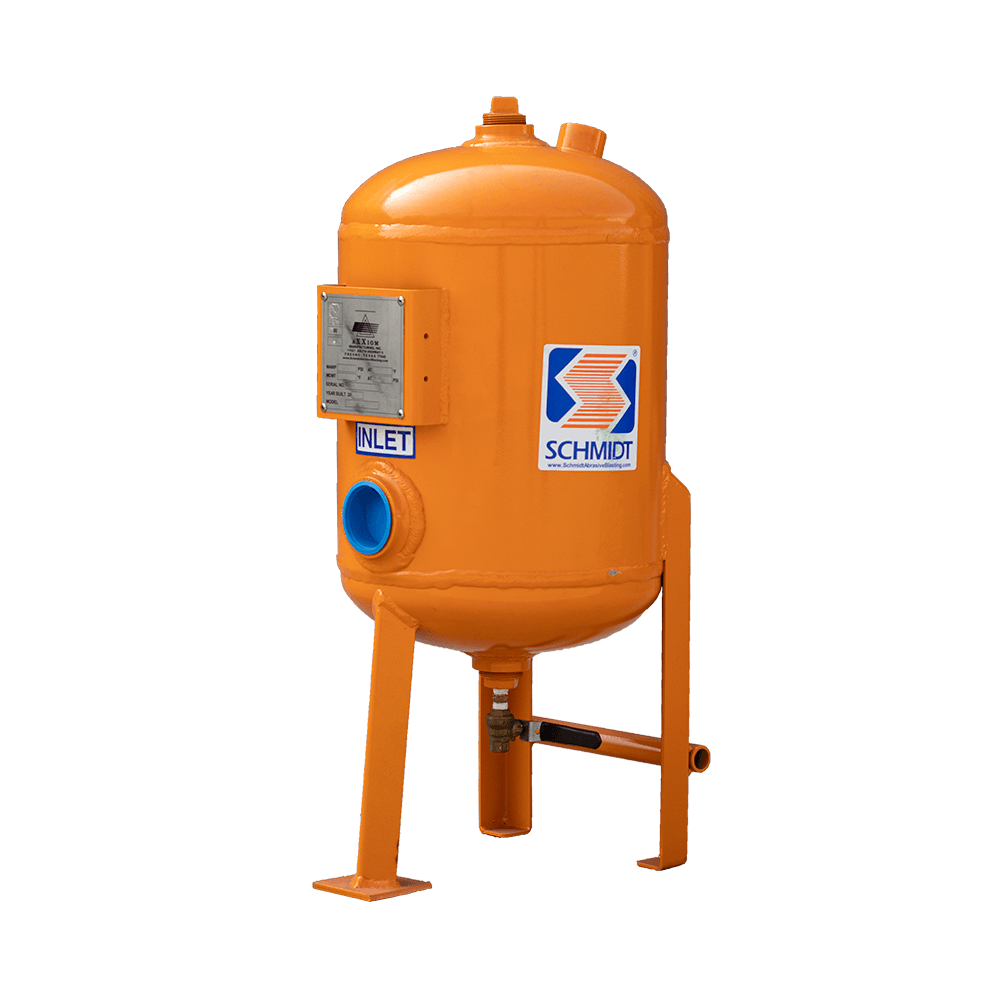

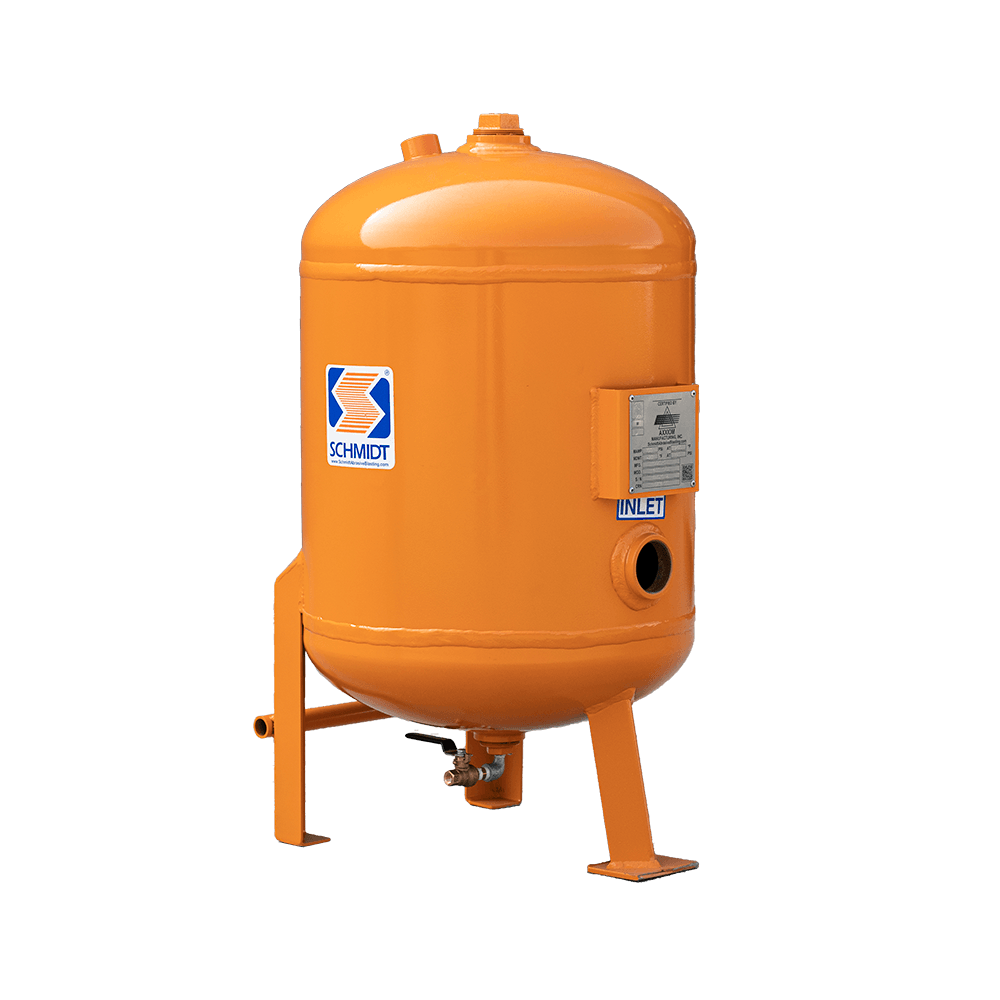

Schmidt Moisture Separator Tank
Sku: P-AFMSH
The Schmidt Moisture Separator Tank is a valuable option used to maintain efficiency in certain abrasive blasting applications. By removing moisture from compressed air through an expansion-based method, it helps prevent issues such as flash rusting, abrasive clumping, and control valve contamination. This ensures a smoother flow of abrasives and consistent blasting performance.
Designed for use in drier, arid environments, this moisture separator offers a practical solution for operations that do not require the advanced moisture removal capabilities of aftercoolers or air dryers.
Key Features:
- Removes moisture through expansion-based separation
- Prevents flash rusting and abrasive clumping
- Reduces contamination of control valves
- Ideal for environments with moderate moisture levels
- Compact and portable for easy system integration
- ASME code-stamped for safety compliance

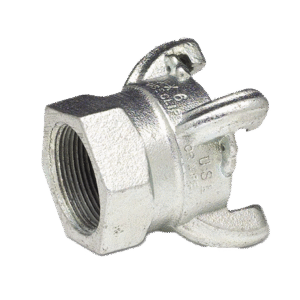

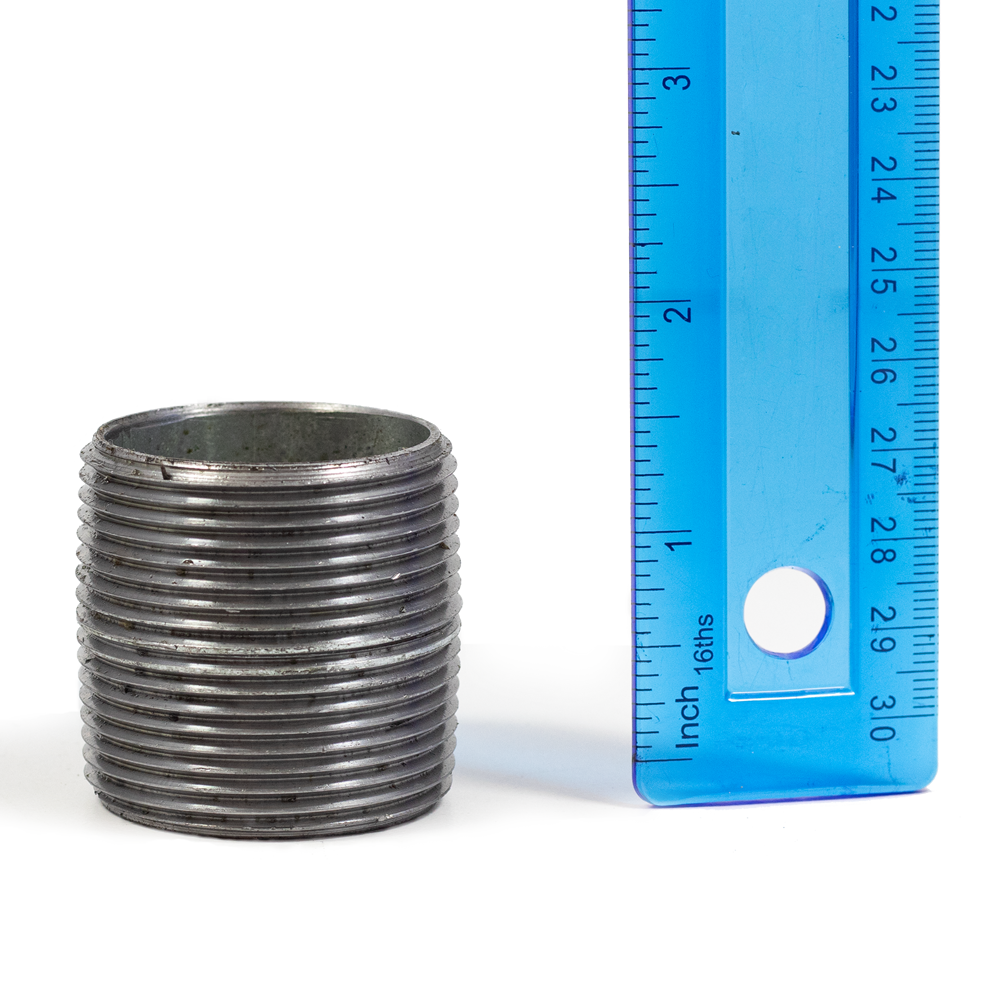

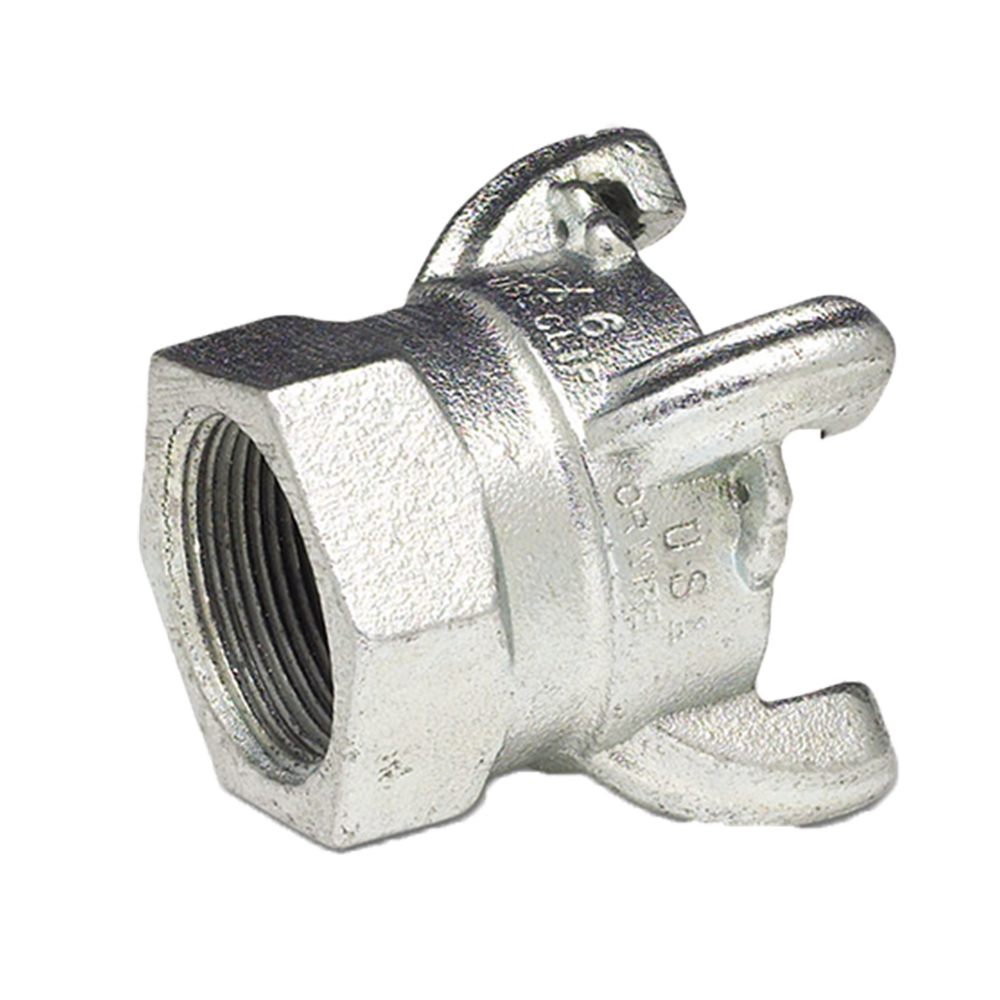

- Built with 2" NPT ports on both Inlet and Outlet, these can be equipped with your choice of Spud or 4-claw fittings, ball valves, splitters, etc. Note: Fittings are optional and must be ordered separately.
Frequently Asked Questions:
Q: How does the Schmidt Moisture Separator Tank remove moisture from compressed air?
A: It utilizes expansion-based separation, allowing compressed air to expand within the tank, causing moisture to condense and separate from the air stream.
Q: What are the common methods for removing moisture from compressed air?
A: Four common methods are:
- Expansion in a tank: Allows air to expand, causing moisture to condense. (This is why compressed air that is NOT treated condenses moisture in a blast pot, because the pot then becomes the expansion tank.)
- Spinning it: When the inlet is offset on the tank, compressed air enters tangentially, creating a spinning motion that separates moisture.
- Cooling it: Using aftercoolers or radiators to cool air, condensing moisture.
- Use of a deliquescent tablet system: Dryers like the Schmidt ADS combine the above 3 methods with a deliquescent tablet system for maximum moisture removal in critical or very humid applications.
Q: Is the Schmidt Moisture Separator Tank suitable for all environments?
A: It is best suited for drier, arid environments where moderate moisture control is sufficient. For higher moisture levels, additional systems like aftercoolers or air dryers are recommended.
