Graco Air Spray Gun Valves and Regulators

Sku: P-GRAIRVALVEREG

Maintain consistent spray patterns, atomization, and finish quality with the Graco Air Valves and Regulators. These components provide precise air pressure regulation, ensuring optimal spray gun performance across automotive, industrial, and protective coating applications.

Key Benefits

• Precise Air Control – Adjust airflow to optimize spray performance and material transfer efficiency.
• Durable & Reliable – Built to withstand high-pressure operations in industrial environments.
• Improves Spray Gun Performance – Maintains consistent atomization for better coating application.
• Easy to Install & Adjust – Designed for quick integration with all Graco Air Spray Guns.

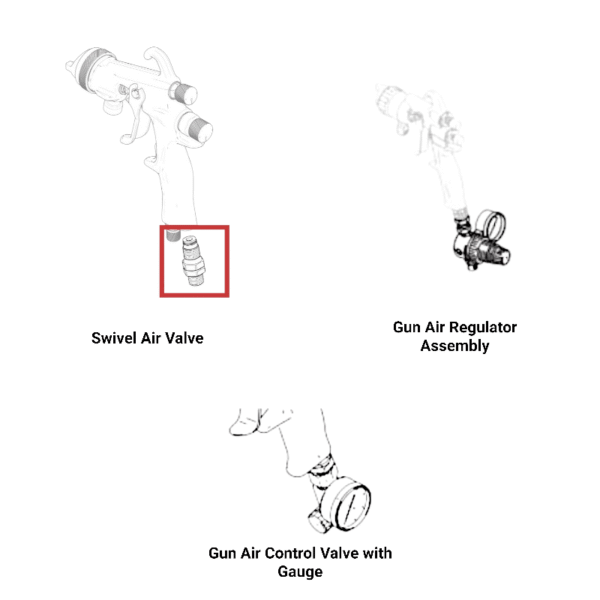

Available Options & Features

• Air Control Valve with Gage
  • Max Pressure: 160 psi / 1.1 MPa / 11 bar
  • Provides precise airflow monitoring and adjustment.

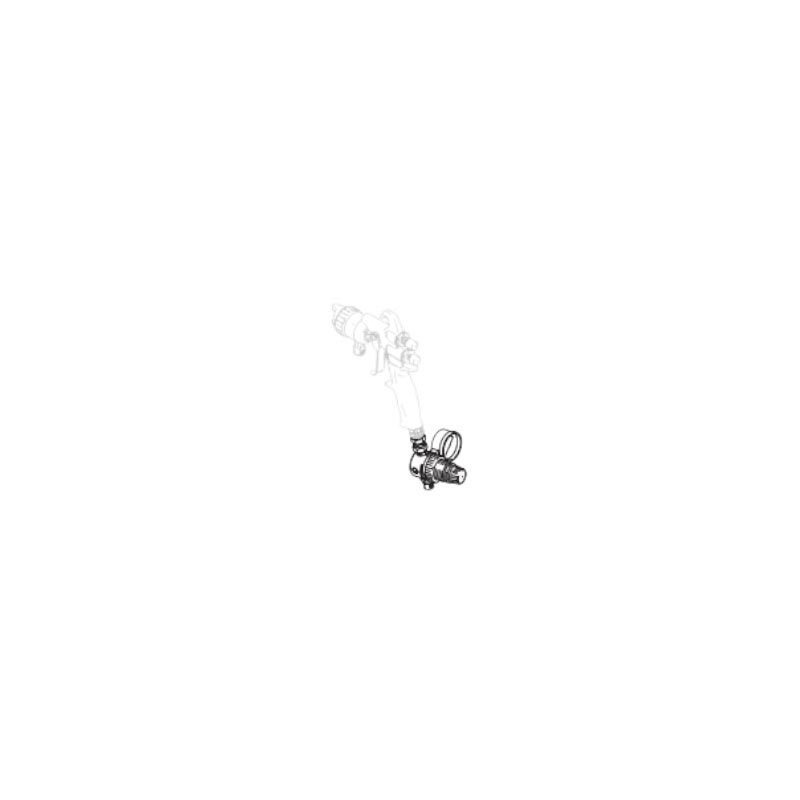

• Gun Air Regulator Assembly
  • Max Pressure: 150 psi / 1.0 MPa / 10.3 bar
  • Ensures stable air pressure for consistent spray quality.

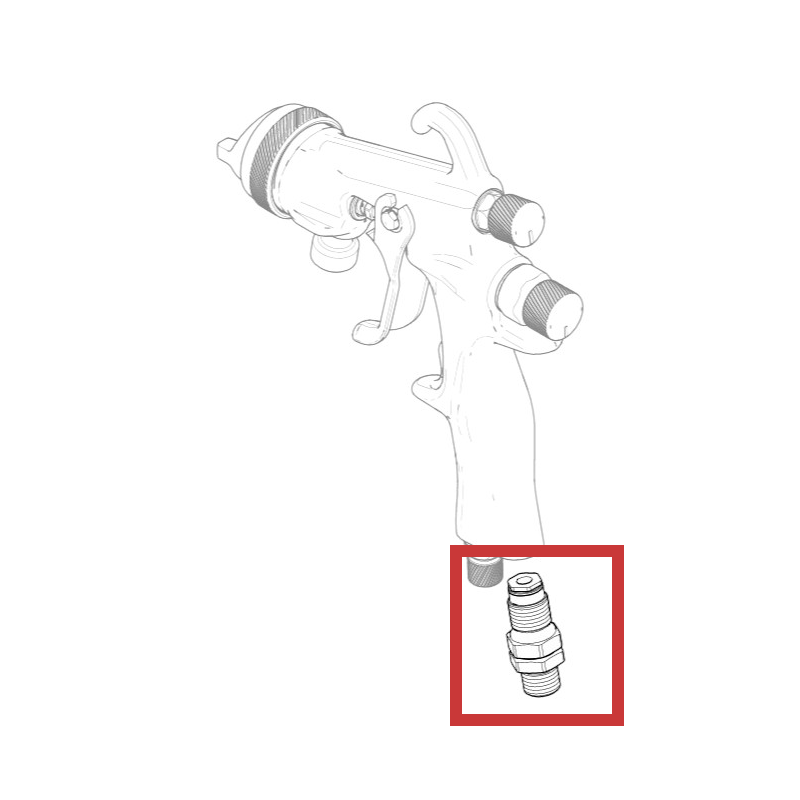

• Swivel Air Valve
  • Max Pressure: 100 psi / 0.7 MPa / 7.0 bar
  • Allows flexible air hose movement, reducing operator fatigue.

Applications These Air Valves and Regulators are designed for all current and legacy Graco Air Spray Guns from the Stellair series, to the AirPro, to the Delta.
