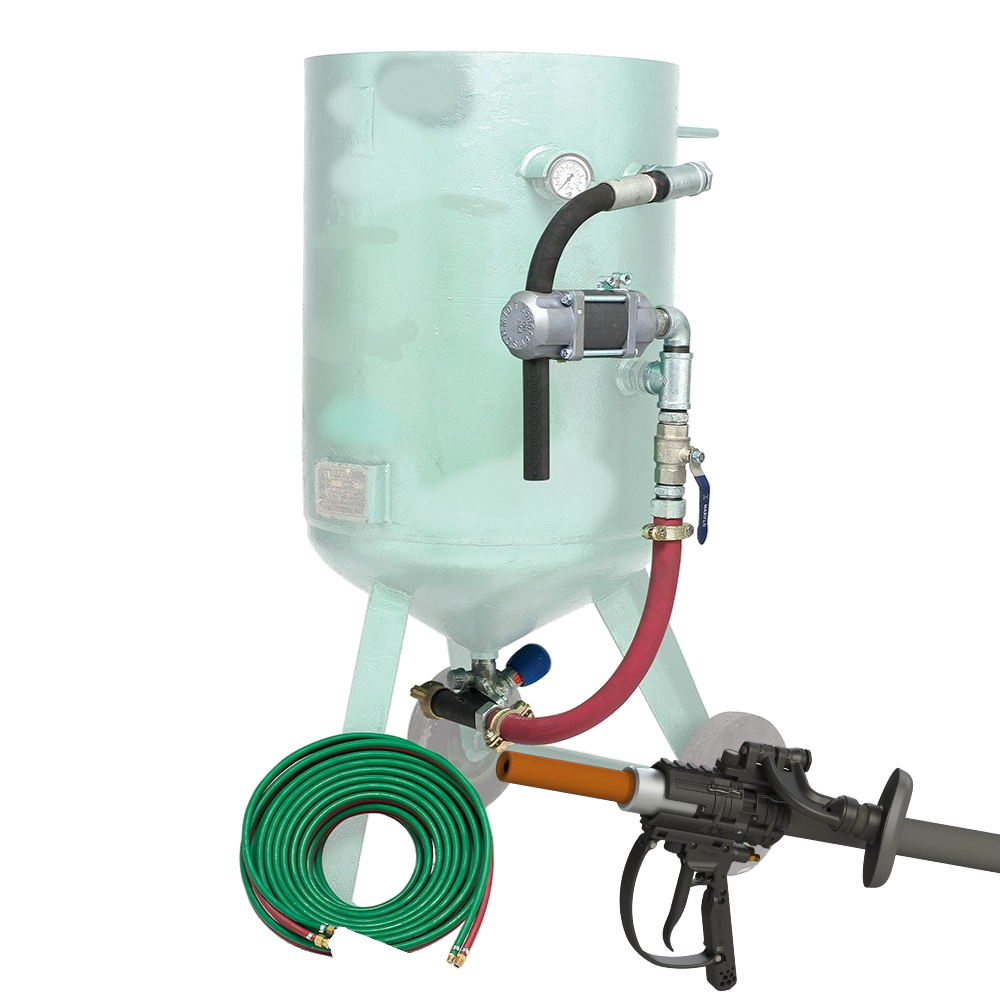

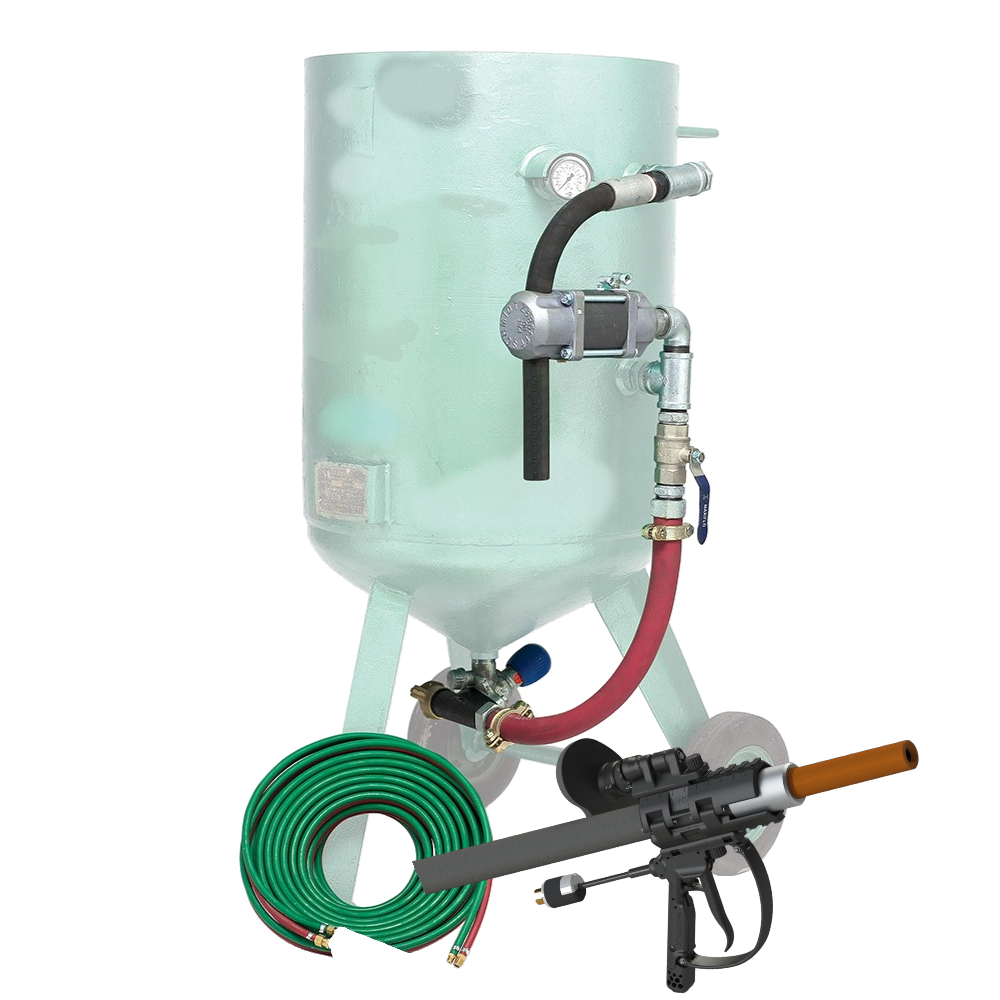

Schmidt Combo and Micro Valve System Retrofit Kit

Sku: P-DM2223

The Axxiom / Schmidt Combo and Micro Valve System Retrofit Kit is a complete upgrade solution for pressure-release blast pots, offering improved control, durability, and safety. Whether your existing system requires valve replacement or a performance boost, this kit provides a fail-safe design that enhances blasting efficiency.

Available in electric or pneumatic configurations, the Combo Valve and MicroValve 3 (MV3) deliver precise abrasive metering and pressure release capabilities, making them reliable and easy to maintain. With pre-configured hoses, fittings, and valves, this retrofit kit installs easily in most existing blast machines.

Key Features & Benefits

• Fail-Safe Pressure Release System
  • Combo Valve ensures rapid depressurization for safety and efficiency.
  • MicroValve 3 provides precise control over abrasive flow, reducing waste.
  • Electric or pneumatic systems to fit various blast setups. Electric is faster acting (safer) than pneumatic - especially in cases where the blast hose exceeds 100 feet, and doesn't freeze up in cold temperatures.
• Easy Retrofit Installation
  • Comes with a full pusherline kit and all necessary fittings.
  • Pre-configured hoses and valves included for a straightforward upgrade.
  • Designed for easy servicing, reducing downtime for maintenance.
• Enhanced Safety & Durability
  • Response deadman handle and deadman line included for safe operation.
  • Pressure-release capability minimizes hazards during operation.
  • Available with G2 paddle-type or with a premium G3 trigger type BAABS deadman.

 Available Options & Upfits:

• Pop-up and Handway components.  The only wear parts not included in the retrofit kit are available separately, if needed.
• VBS II muffler. Conveniently reduce dangerous blow-down noise while retrofitting with this industrial-grade muffler.
• Union-end ball valve / quick connect. Service your metering valve more easily with the union-end ball valve and/or quick valve connect.  This requires 6 inches additional clearance under the pot.
• Pot-Mounted Moisture Separator.  Recommended when the blast pot is at a distance from the air dryer. Removes residual moisture caused by condensation in the air line.  (Does not substitute for an air dryer.)
• Blast Hose, Bull hose, Lids & Screens and PPE are also available separately.

Installation is simple with tech-support available if needed. Installation by a BlastOne technician is also available.
