Online form Clemco TLR 50 / TLR 300 Pneumatic Deadman Control Systems
Sku: P-DMRMCTLR

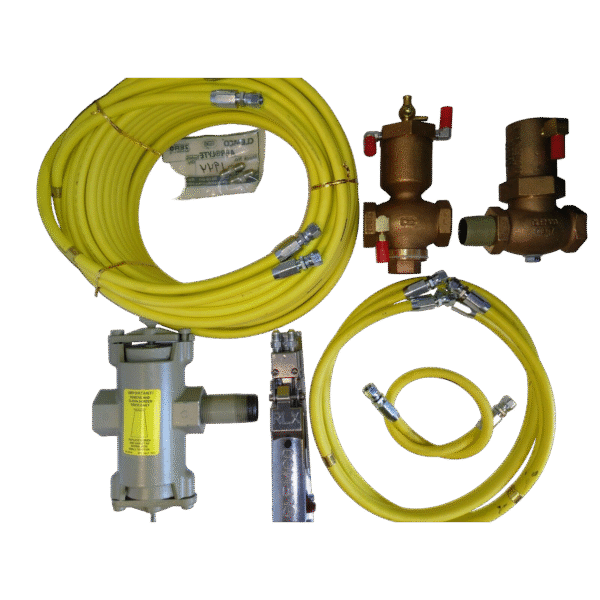

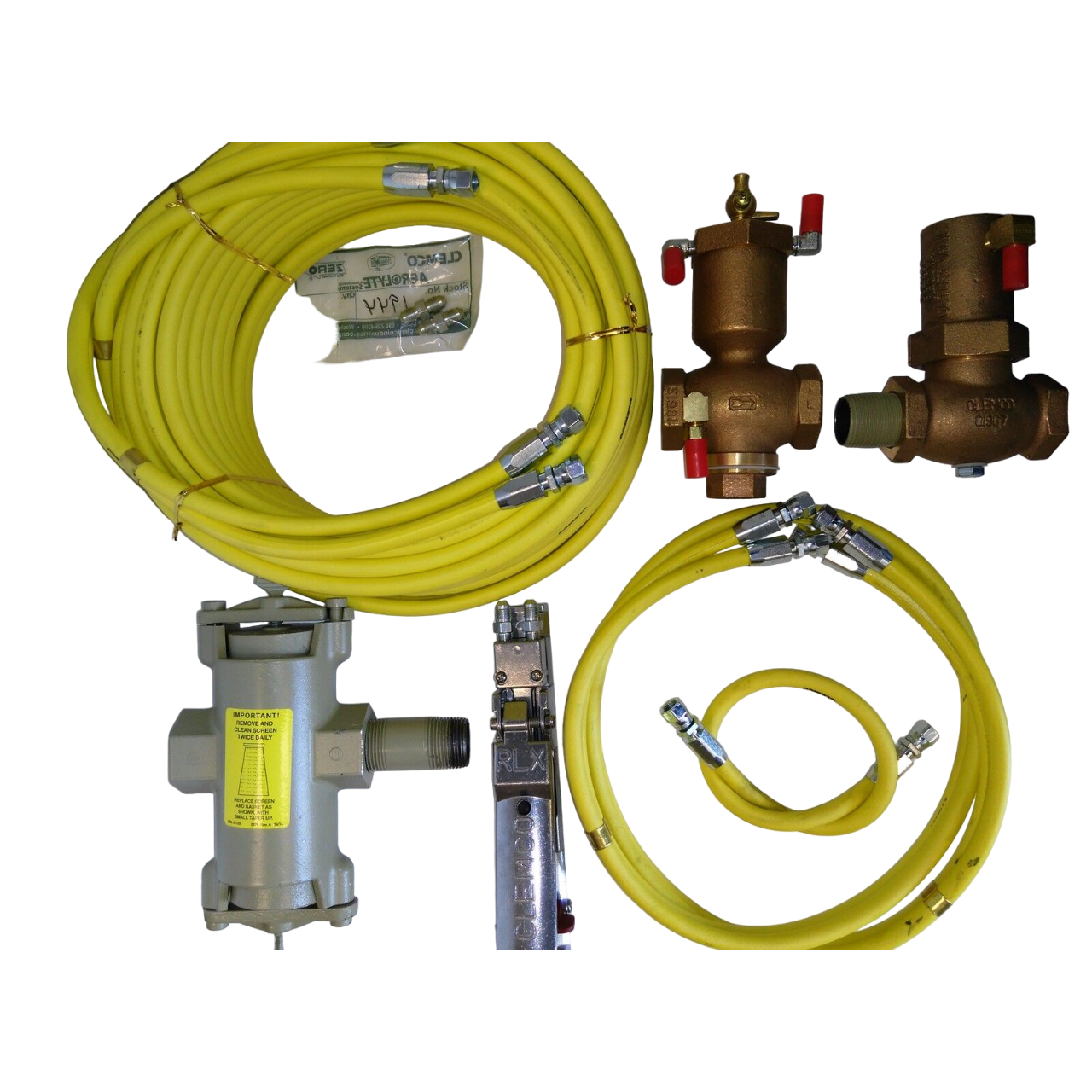

Clemco remote control systems provide OSHA required deadman safety for abrasive blasting operations. Â The complete deadman systems in this section are for pressure-release pneumatic systems, and include the following:- RLX deadman handle
- Choice of air outlet valves (TLR-300 series only)
- Air Inlet valve
- Abrasive trap
- 50' coupled twinline deadman control hose
- Deadman Control Systems without Abrasive Cut-off Switch (ACS)
- For blast machines with ½" piping:
- TLR-50, w/ diaphragm Outlet Valve. Â MPN: 02518
- For blast machines with 1-¼ / 1-½" piping:
- TLR-300, w/piston OV. Â MPN: 01936
- TLR-300D, w/diaphragm OV. Â MPN: 03448
- For blast machines with ½" piping:
- Deadman Control Systems with Abrasive Cut-off Switch
- For blast machines with 1-¼ / 1-½" piping only:
- TLR-300C, w/piston OV. Â MPN: 21153
- TLR-300DC, w/diaphragm OV. Â MPN: 21155
- Both versions also include a new AQV quantum metering valve.
- For blast machines with 1-¼ / 1-½" piping only:
- Diaphragm outlet valves are recommended when using aggressive or fine-mesh abrasives.
- The optional Abrasive Cut-off System allows the operator to conveniently stop abrasive flow with the flip of a switch, thereby allowing the blast hose to be used as an air hose. Makes blowing-off the surface easy!

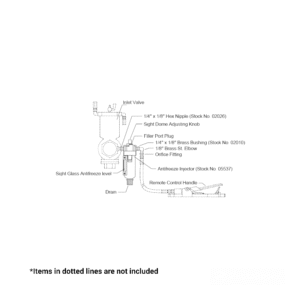

- These are pneumatically-operated control systems. Â Clemco electric pressure-release remote control systems are also available, which are recommended when blasting at over 100' from the pot and/or when blasting in cold weather where control-line freeze-up is a concern. Â An anti-freeze injector is also available to mitigate freeze up concerns.
- Legacy Clemco TLR-100 systems for blast machines with 1" piping are no longer available as complete systems. Â Individual components and repair parts are still available.
