Bullard Airline Fittings

Sku: P-BAHOSEFITTINGS

Bullard Breathing Air Hose Fittings are designed to ensure airtight, secure connections in supplied air respirator systems, supporting both safety and compliance in industrial environments. These durable fittings are compatible with Bullard’s V5, V10, and V20 Series breathing air hoses and feature multiple connection styles, including Industrial Interchange (aka Hansen), Schrader, Snap-Tite, and CEJN, to meet a wide range of operational requirements.

Constructed from high-quality materials and engineered to meet stringent safety standards, these fittings play a critical role in maintaining uninterrupted, clean air supply to respirator hoods and helmets. They are color- and style-matched to prevent misconnection with incompatible fittings, reducing the risk of accidental exposure to non-breathable gases.

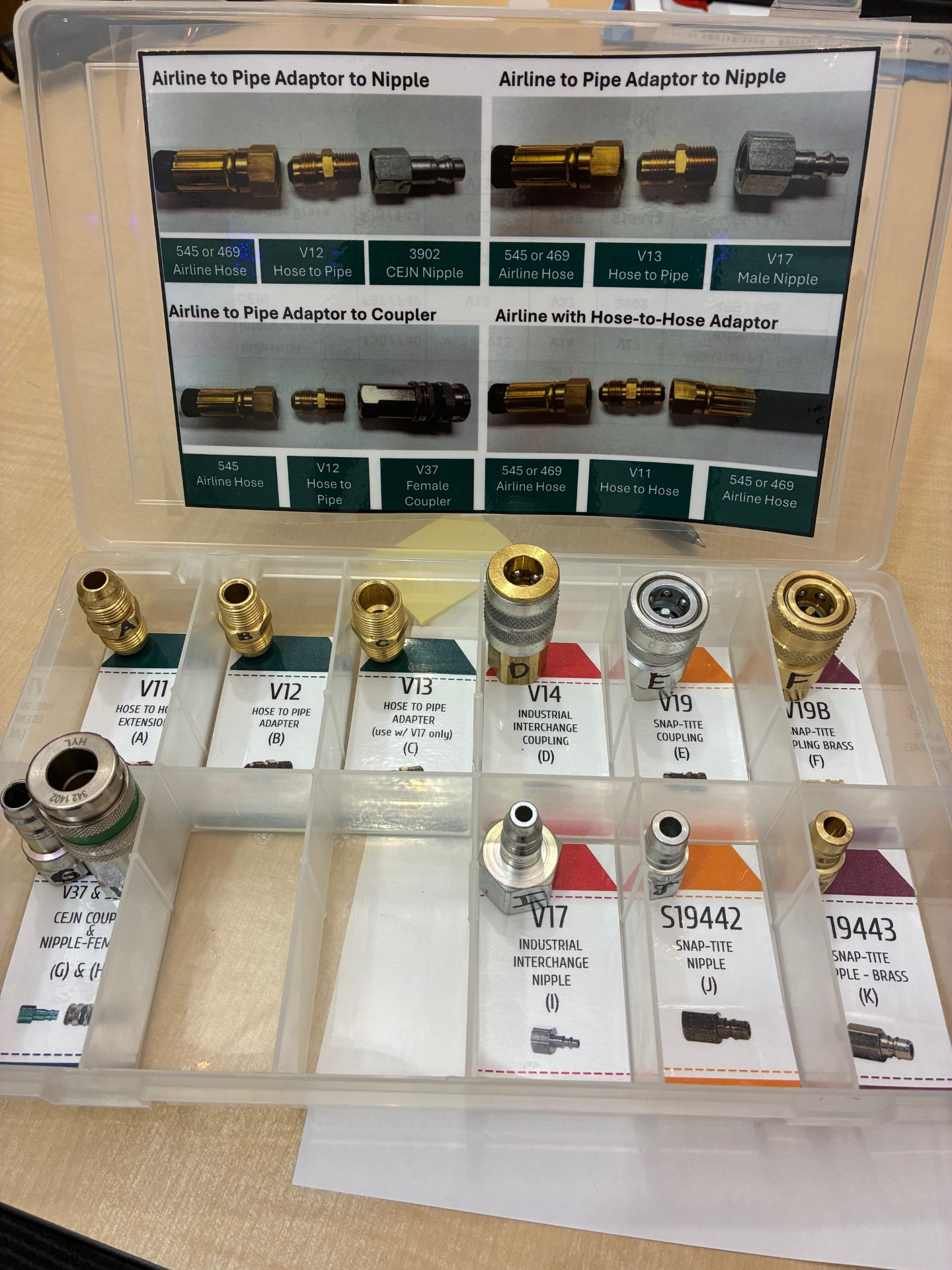

Common Fitting Types and MPNs:

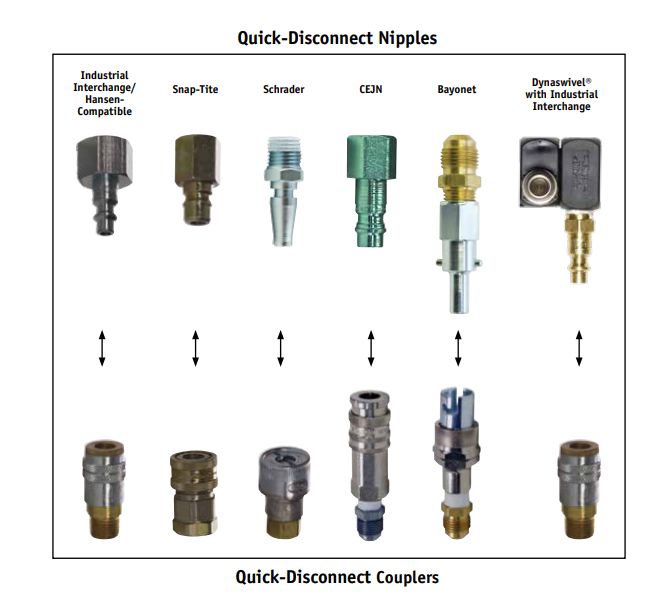

Quick-Disconnect Nipples:

3902 – CEJN Style

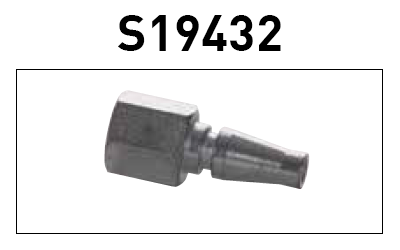

S19432 – Schrader Style

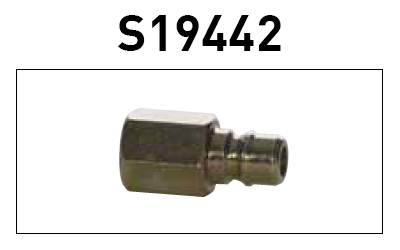

S19442 – Snap-Tite (Steel)

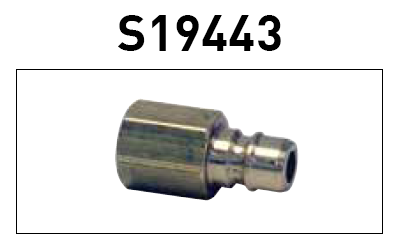

S19443 – Snap-Tite (Brass)

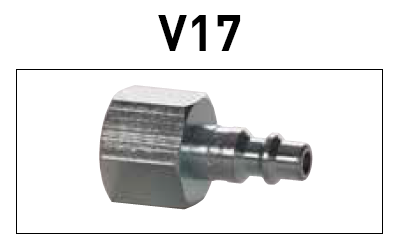

V17 – Hansen Style (aka Industrial Interchange)

Quick-Disconnect Couplers:

3914 – CEJN Style

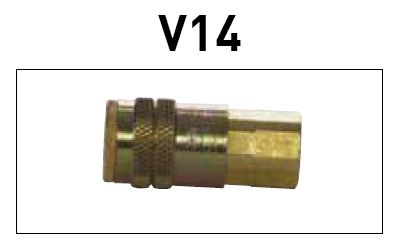

V14 – Hansen Style (aka Industrial Interchange)

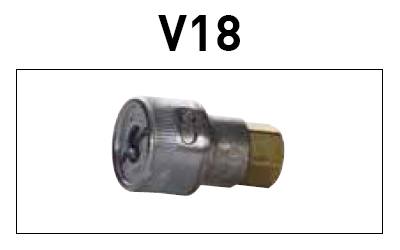

V18 – Schrader Style

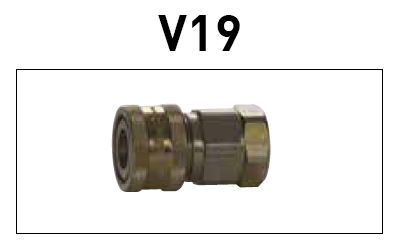

V19 – Snap-Tite (Steel)

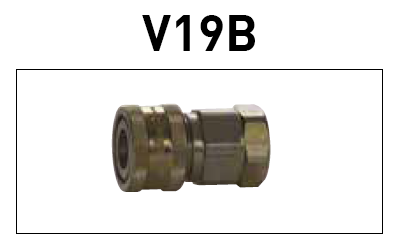

V19B – Snap-Tite (Brass)

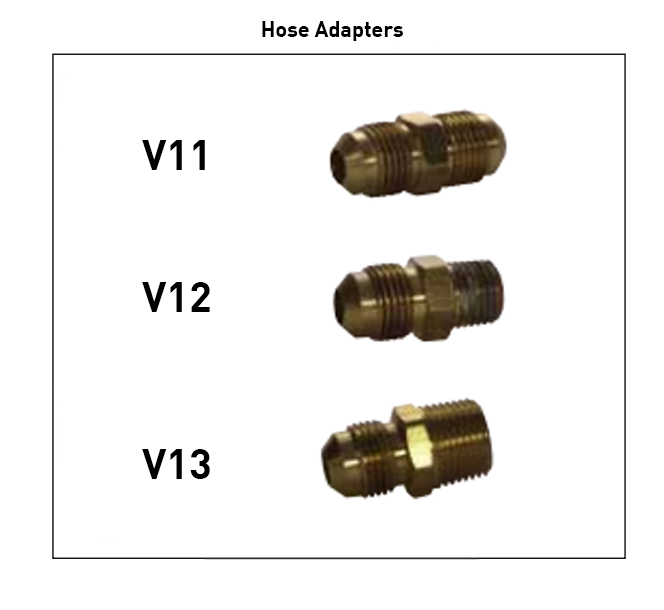

Adapters:

V11 – 3/8" Hose-to-Hose Adapter

V12 – 3/8" Hose to 1/4" Pipe Adapter

V13 – 3/8" Hose to 3/8" Pipe Adapter

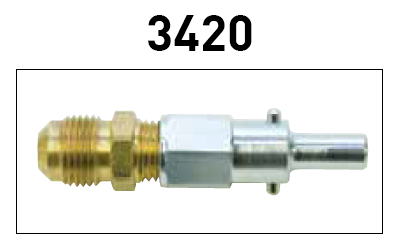

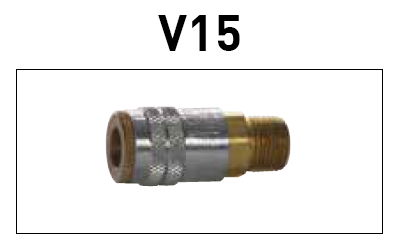

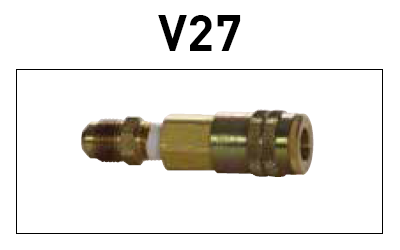

V15, V27, V39, 3420 – Application-specific fittings used for complex hose configurations or specialized equipment compatibility.

Compatible Hose Series:

While these products are fittings only, they are designed for use with the following Bullard breathing air hose types:

V5 Series Coiled Hose (1/4” I.D.)

V10 Series (3/8” I.D. EPDM Rubber Hose)

V20 Series (1/2” I.D. EPDM Rubber Hose - for Free Air Pump use)

Applications:

These fittings are essential for industries such as abrasive blasting, painting, spray coating, confined space entry, and general industrial use—where maintaining a consistent supply of Grade D breathable air is critical.

By using Bullard’s genuine fittings, you ensure a leak-free seal and maintain OSHA compliance for your respiratory protection systems. They also help reduce hose wear and downtime, thanks to quick-connect design features that support fast setup and teardown on the jobsite.
