Blast and Vacuum Workhead options

SKU: P-VCBV

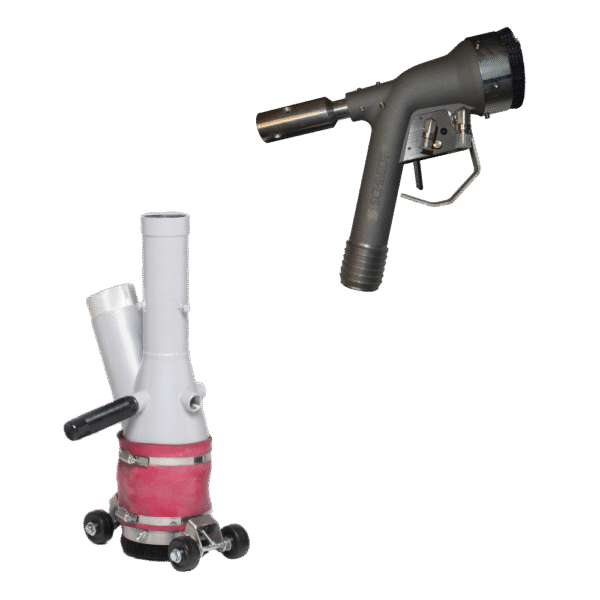

The workhead is the business end of a vacuum blaster. Various versions are available for different applications, including the following:

Standard / BNV-3
Standard / BNV-5
Large with wheels / BNV-6
Right Angle
- Designed to get into smaller areas

In addition to the above, the MiniBRS G2 Trigger Workheads are easier to handle than other versions. Features include the following:

Longer lasting brushes
More containment while blasting
Improved vacuum flow
Easier to slide head over surfaces while blasting
Available in either Electric or Pneumatic

For either series, various brushes can be mounted for different surface geometries, as follows:

Flat Surface
Inside Corner
Outside Corner

Categories: Clearance Products, Vacuum Blaster Workheads, Parts & Related Tags: Axxiom, blast, blasting, Blastnvac 6 Head, bnv6, electric, g2, grip, head, heads, hose, kit, long, miniBRS, nozzles, Pistol, Pneumatic, trigger, vacuume, VC803300080, VC803300080E, venturi, wheels, work, workhead

Blast and Vacuum Workhead options

SKU: P-VCBV

Web price i

$1,200.00 - $3,421.26

Ship to 43215

Product Type
Quantity

$1,200.00 – $3,421.26

Blast and Vacuum Workhead options

Sku: P-VCBV

BLAST N' VAC WORKHEAD COMPLETE KITS Typically used for blasting flat surfaces. Wheel attachments help improve productivity and capture of blast. Integrity of operation requires that operator keep the Brush Seals in contact with the work surface. This blast and vacuum tool has four wheels which help the operator keep a good seal on the surface. Uses an inner and outer set of replaceable brushes to provide a seal against the work surface. Applications: Use on dust sensitive projects where containment is not possible. Suitable for removal of toxic paints like lead. Specifications:

Blast and vacuum workheads attach to most standard blast machines
Requires a separate vacuum source to keep the workhead under negative pressure
Recovers abrasive and blast debris

G2 TRIGGER WORKHEADS

The pneumatic workhead requires clean air supply at a minimum of 55 psi
The electric workhead operates on a 12V or 25VDC supply voltage

			Purchase Price
VC803300080	Pistol Grip w/ Pneumatic Deadman	-	$1,200.00

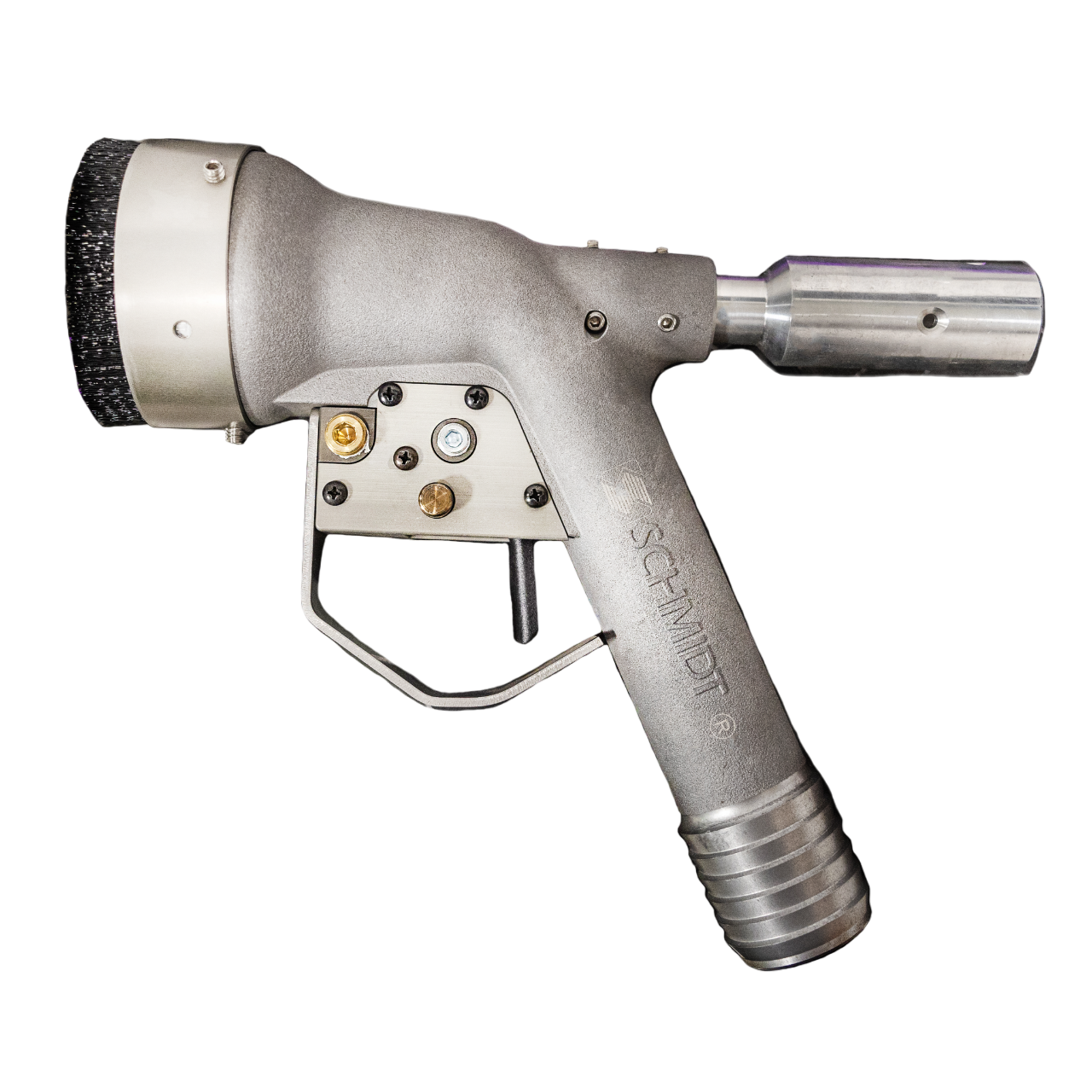

VC803300080E	Pistol Grip w/ Electric Deadman	-	$1,207.00
VCBV100	Large with wheels / BNV-6	-	$3,348.33
VCBV120	Right Angle	-	$3,421.26
VCBV200	Standard / BNV-3	-	$1,806.00

Add to Cart

		Purchase Price	Qty
P-BRUSHG2TRIGGERWKHD	Brushes for MiniBRS G2 Trigger Vacuum Workheads	$43.00 - $220.00	See Options
VC803300082	G2 Trigger Workhead Cone Liner	$214.00
VC803300083	Trigger Workhead Rubber Gasket	$26.00
VC803300084	Trigger Workhead Outside Sleeve	$46.00
VC803300091	Vacuum Workhead Trigger Guard	$41.67

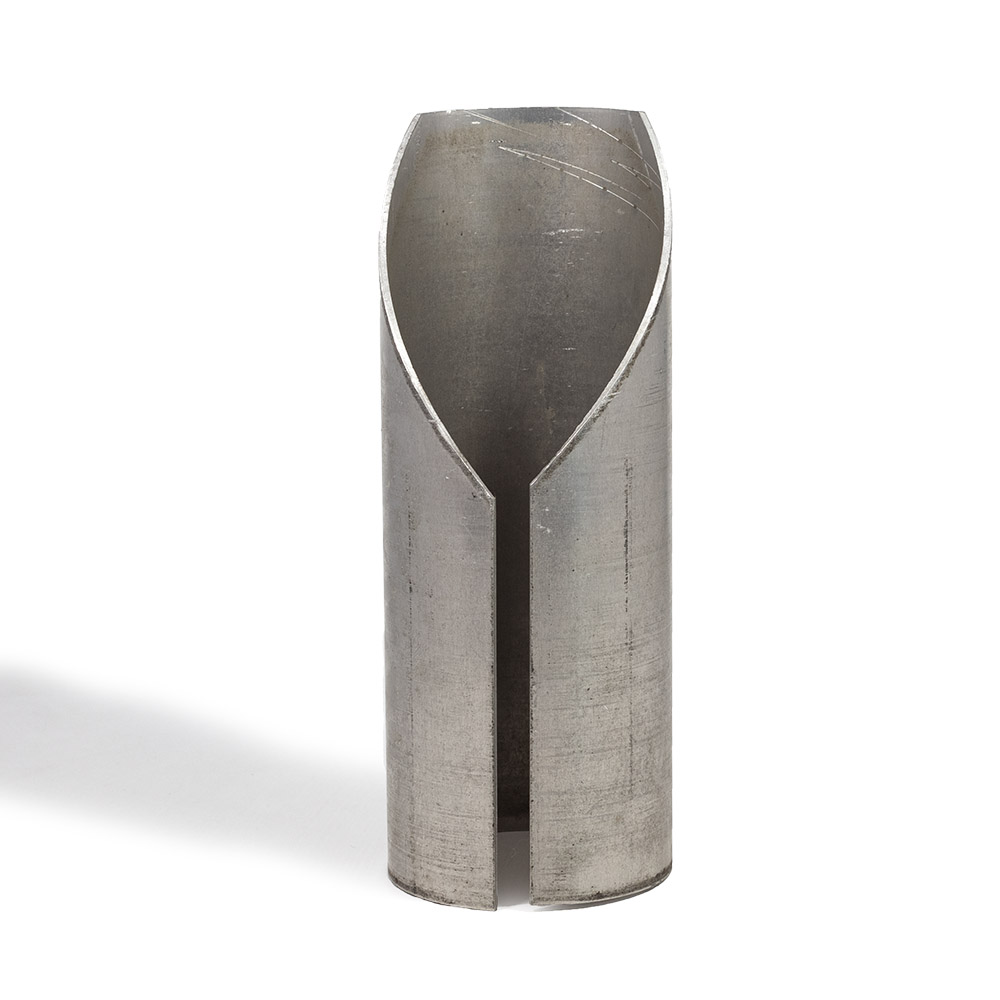

VCBNV030	Replacement Wear Sleeve for BNV-6 Vacuum Port	$44.77
VCBV255	Flat Inner Brush for VCBV200	$16.93

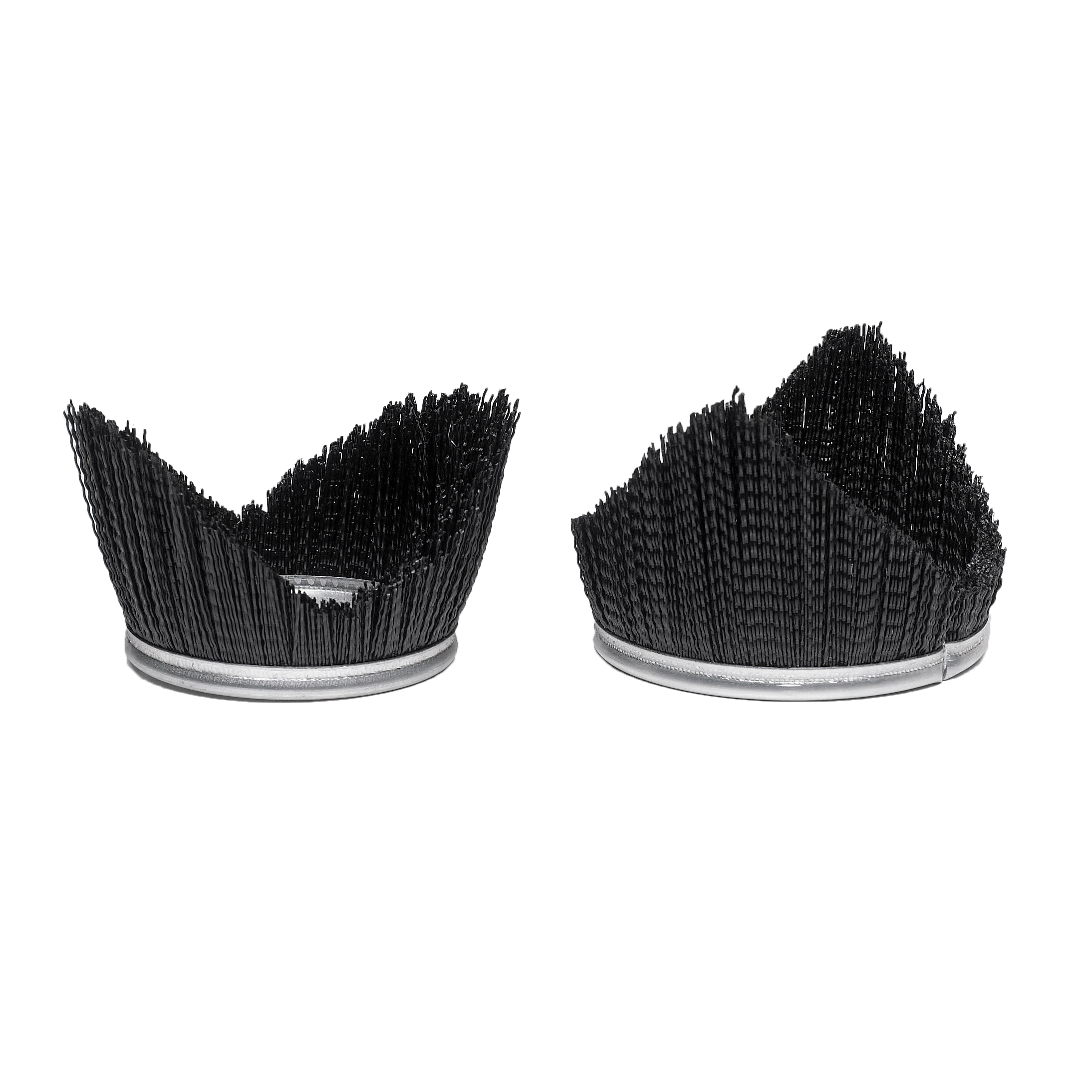

VCBV2605	Inner and Outer Brush Set – Inside Corner for VCBV200	$57.75

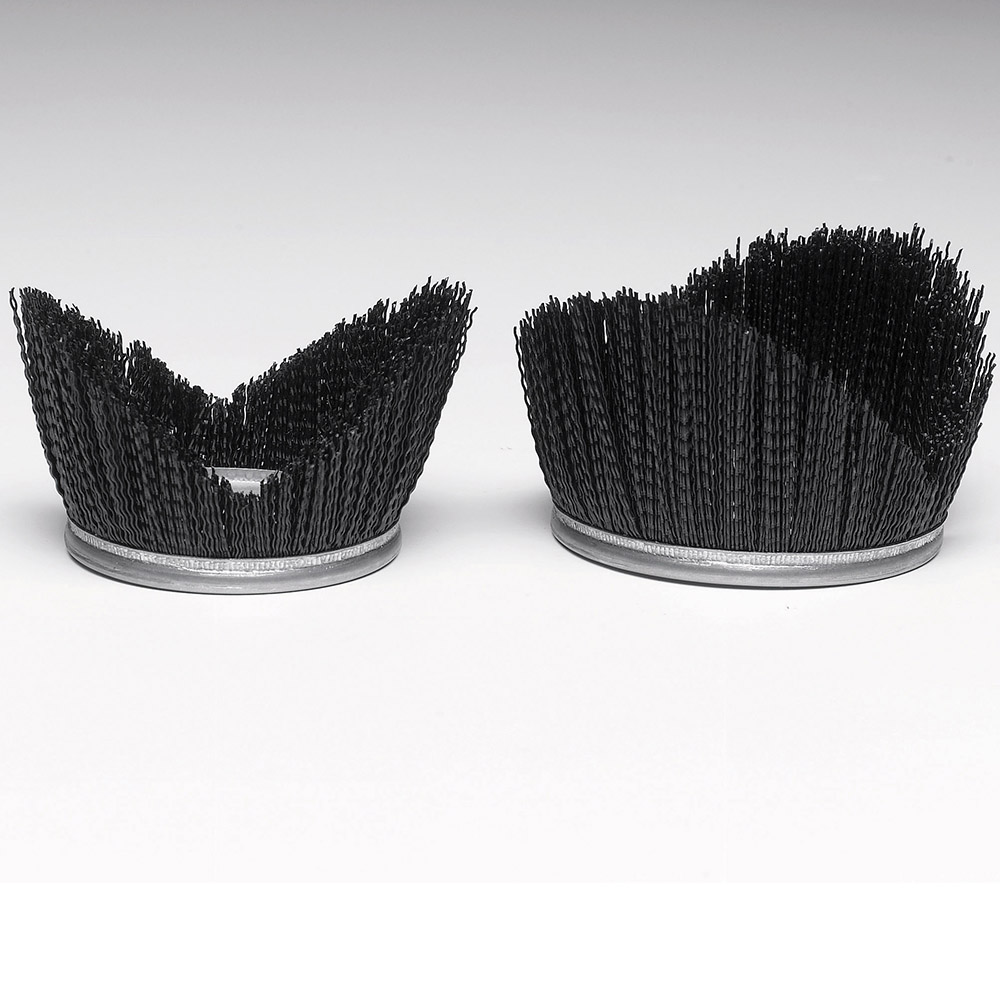

VCBV2705	Inner and Outer Brush Set – Outside Corner for VCBV200	$57.21
VCBV025	Replacement Handle for VCBV200	$29.00

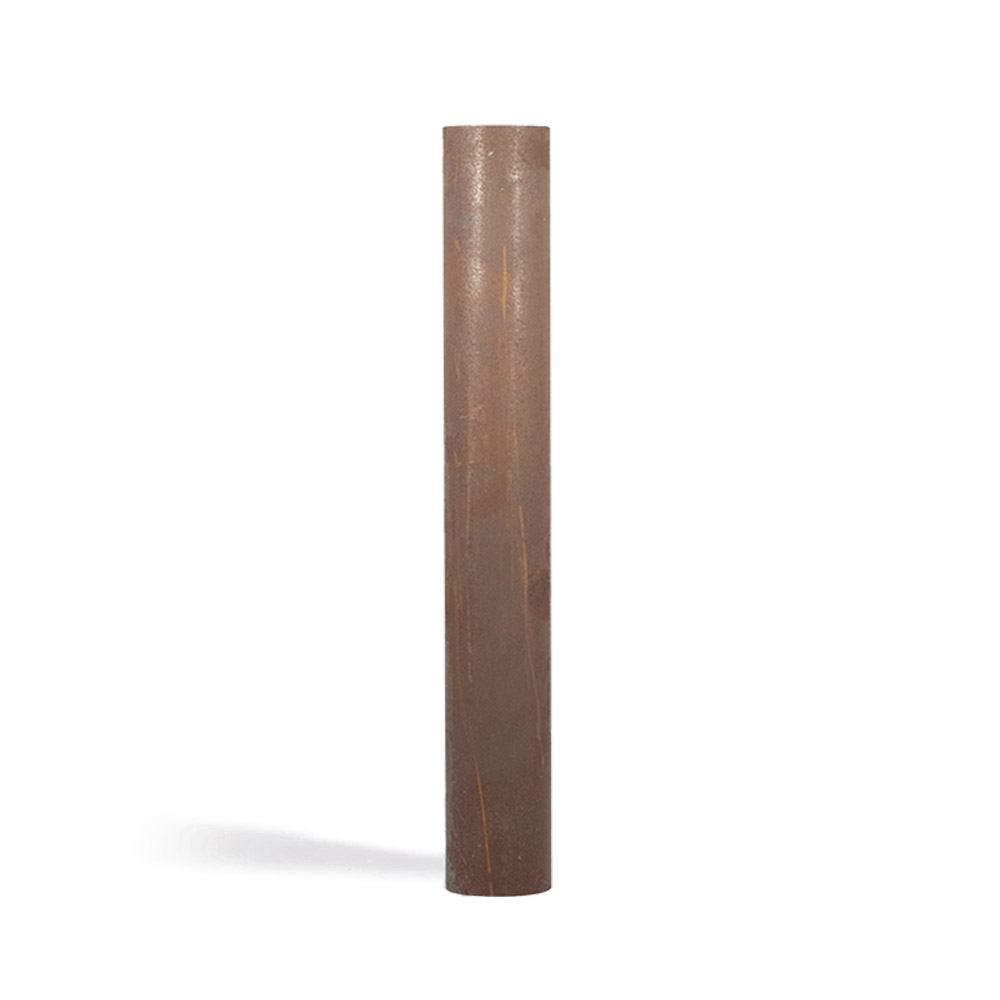

VCBV006	Blast and Vacuum Central Wear Liner	$23.20
VCBV250	Flat Outer Brush for VCBV200	$18.95
VCBV023	Blast and Vacuum Central Wear Liner	$48.74
VCBV280	Flat Heavy Duty Brush	$35.77
VCBV170	Wear Liner Lower Main Body for VCBV-200	$136.50
VCBV066	Blast and Vac Head Nozzle – Size 6	$540.00

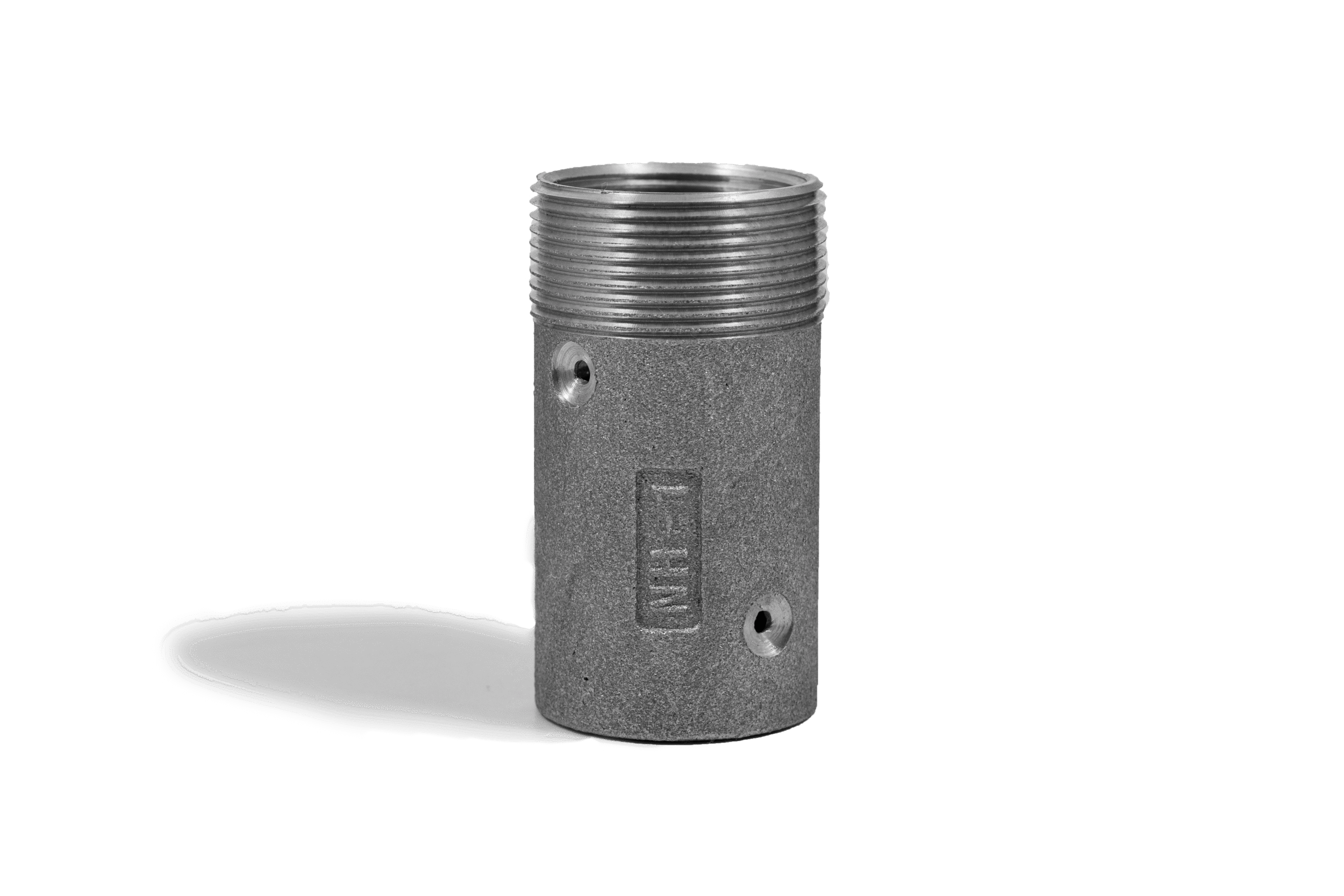

VCBV201	Fine Thread Nozzle Holder for VCBV200	$71.78
VCBV104	Blast and Vacuum Head Nozzle – Size 4	$572.00
VCBVRA4	Right-Angle Nozzle for Right Angle Workhead Kit	$695.00
DM226300420	Replacement Control Valve Assembly for G2 Pneumatic Trigger Deadman	$392.00
DM226340420	Replacement Control Module for G2 Electric Pistol-Grip BRS Workhead	$333.00
