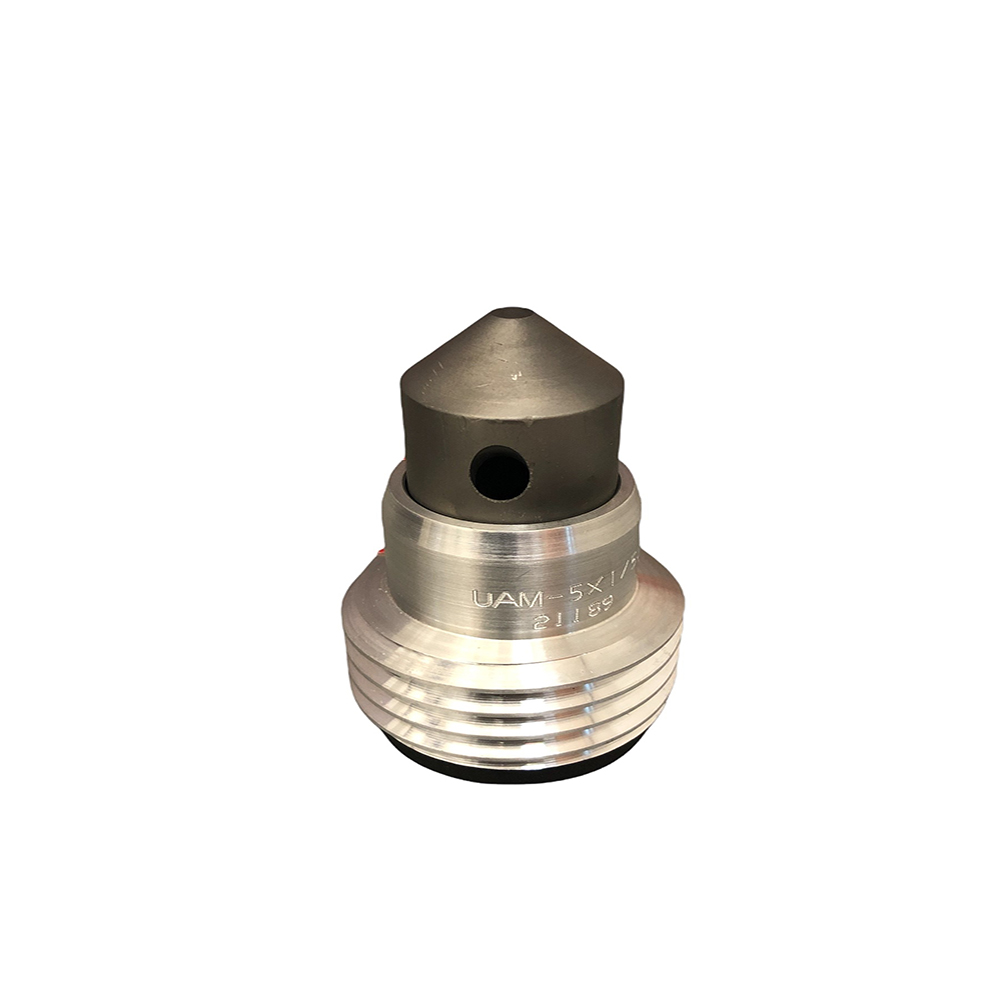

AAM Angle Blast Nozzle, Tungsten Carbide

SKU: P-BNAAM

Ideal for blasting recesses, pipe internals, behind angles, lattices etc.
2″ UNC (50mm) coarse Contractor thread ‘C’ or 1 1/4″ NPSM (32mm) Fine Industrial thread ‘F’
3/4″ (20mm) throat entry
45° single, double or triple (equi-spaced) side outlets
Tungsten carbide liner
**Triple orifice nozzles have triple air & abrasive consumption!

Categories: Angled Blast Nozzles, Blast Nozzles Tags: 45°, AAM, angle, blast, bnaam5x1c, carbide, contractor, nozzle, thread, tungsten

AAM Angle Blast Nozzle, Tungsten Carbide

SKU: P-BNAAM

Web price i

$230.19 - $384.00

Ship to 43215

Nozzle Size
Description
Product Type
Thread Type
Quantity

$230.19 – $384.00

Product Description
Product Options

AAM Angle Blast Nozzle, Tungsten Carbide

Sku: P-BNAAM

This nozzle is suitable for spots that are difficult to reach - including custom constructions.

						Product Notes	Purchase Price
BNAAM3x1C	#3 - 3/16"	45° Forward Angle Nozzle	Single Orifice	Coarse 2" (Contractor)	-		$312.09
BNAAM7x1C	#7 - 7/16"	45° Forward Angle Nozzle	Single Orifice	Coarse 2" (Contractor)	-		$312.09
BNAAM3x1R	#3 - 3/16"	125° Reverse Angle Nozzle	Single Orifice	Fine 1-1/4" (Industrial)	-		$329.60
BNAAM8x1C	#8 - 1/2"	45° Forward Angle Nozzle	Single Orifice	Coarse 2" (Contractor)	-		$312.09
BNAAM3x2C	#3 - 3/16"	45° Forward Angle Nozzle	Double Orifice	Coarse 2" (Contractor)	-		$312.09
BNAAM8x1R	#8 - 1/2"	125° Reverse Angle Nozzle	Single Orifice	Fine 1-1/4" (Industrial)	-		$329.60

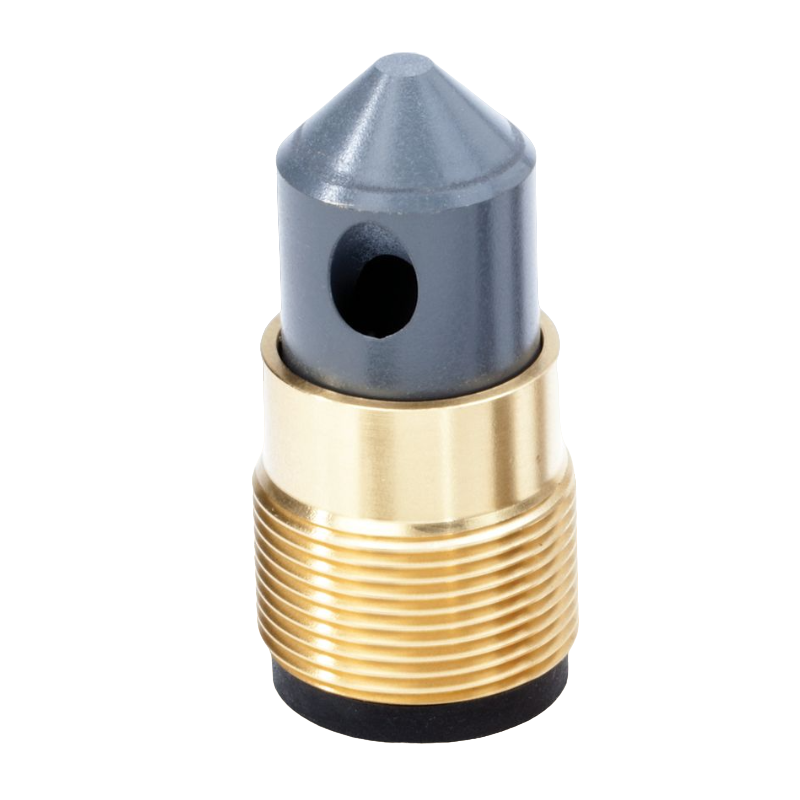

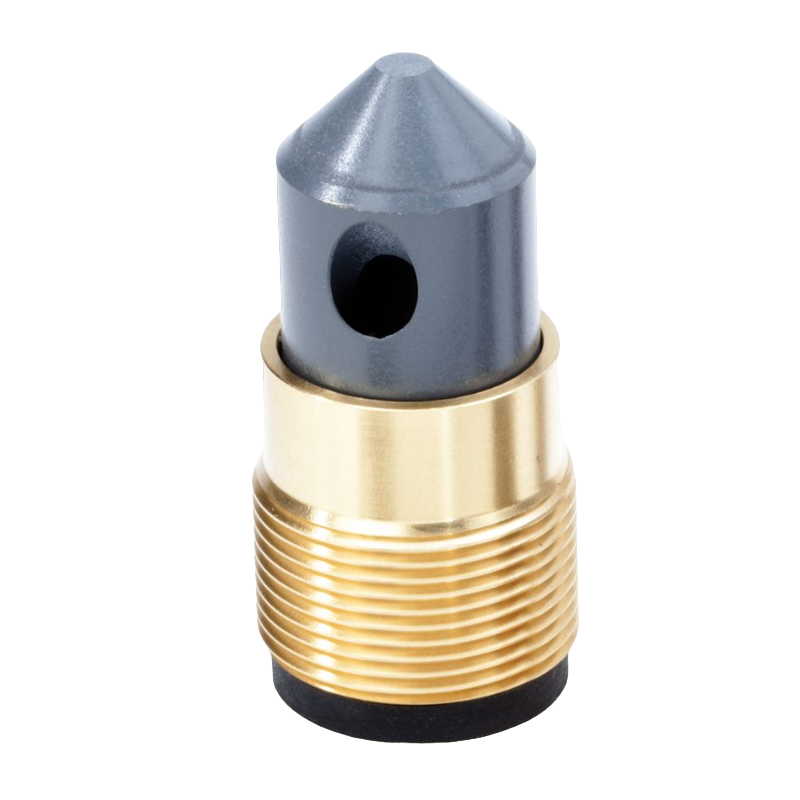

BNAAM3x2F	#3 - 3/16"	45° Forward Angle Nozzle	Double Orifice	Fine 1-1/4" (Industrial)	-		$312.09
BNAAM8x2C	#8 - 1/2"	45° Forward Angle Nozzle	Double Orifice	Coarse 2" (Contractor)	-		$312.09
BNAAM3x3C	#3 - 3/16"	45° Forward Angle Nozzle	Triple Orifice	Coarse 2" (Contractor)	-		$312.09
BNAAM8x2F	#6 - 3/8"	45° Forward Angle Nozzle	Double Orifice	Fine 1-1/4" (Industrial)	-		$312.09
BNAAM4x1R	#4 - 1/4"	125° Reverse Angle Nozzle	Single Orifice	Fine 1-1/4" (Industrial)	-		$329.60
BNAAM8x3F	#8 - 1/2"	45° Forward Angle Nozzle	Triple Orifice	Fine 1-1/4" (Industrial)	-		$312.09
BNAAM4x2F	#4 - 1/4"	45° Forward Angle Nozzle	Double Orifice	Fine 1-1/4" (Industrial)	-		$312.09
BNAAM8x4F60120	#8 - 1/2"	Combination 60° Forward / 120° Reverse Angle Nozzle	Quad Orifice	Fine 1-1/4" (Industrial)	-		$329.60
BNAAM4x3R	#4 - 1/4"	125° Reverse Angle Nozzle	Triple Orifice	Fine 1-1/4" (Industrial)	-		$329.60
BNAAM4x4F60120	#4 - 1/4"	Combination 60° Forward / 120° Reverse Angle Nozzle	Quad Orifice	Fine 1-1/4" (Industrial)	-		$329.60
BNAAM5x1C	#5 - 5/16"	45° Forward Angle Nozzle	Single Orifice	Coarse 2" (Contractor)	-		$230.19
BNAAM5x1R	#5 - 5/16"	125° Reverse Angle Nozzle	Single Orifice	Fine 1-1/4" (Industrial)	-		$329.60
BNAAM5x3R	#5 - 5/16"	125° Reverse Angle Nozzle	Triple Orifice	Fine 1-1/4" (Industrial)	-		$329.60
BNAAM6x1C	#6 - 3/8"	45° Forward Angle Nozzle	Single Orifice	Coarse 2" (Contractor)	-		$312.09
BNAAM6x1F	#6 - 3/8"	45° Forward Angle Nozzle	Single Orifice	Fine 1-1/4" (Industrial)	-		$312.09
BNAAM6x2F	#6 - 3/8"	45° Forward Angle Nozzle	Double Orifice	Fine 1-1/4" (Industrial)	-		$312.09

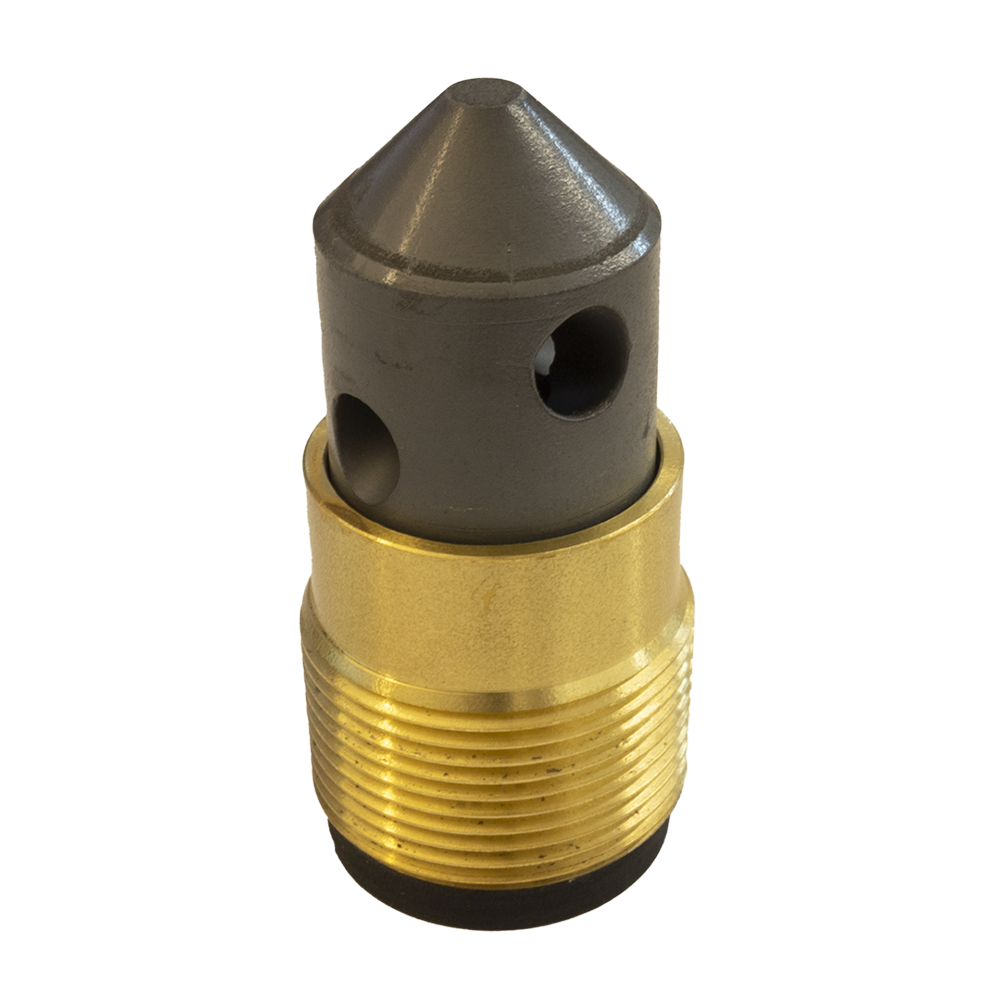

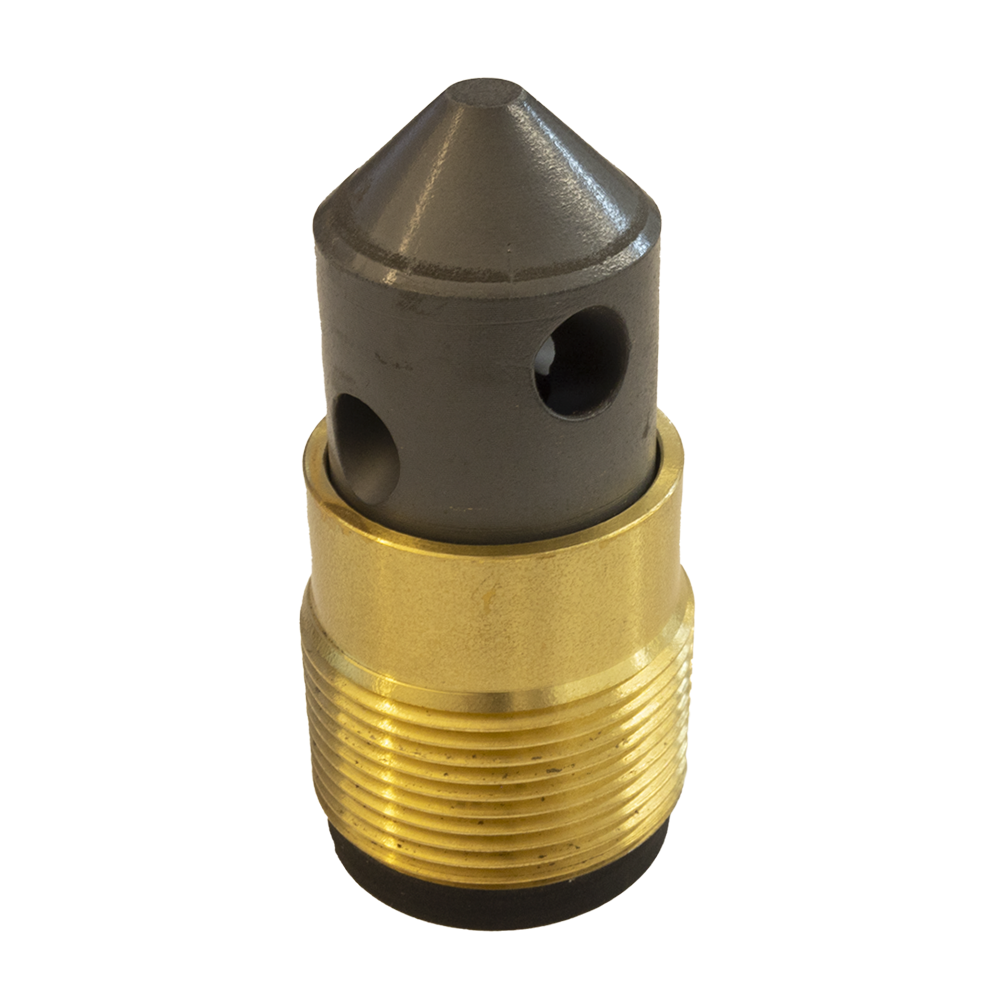

BNAAM6X4F60120	#6 - 3/8"	Combination 60° Forward / 120° Reverse Angle Nozzle	Quad Orifice	Fine 1-1/4" (Industrial)	-	This quad outlet blast nozzle is idea for blasting inside small cavities, p...	$384.00
