Surface Profile
Ensure your coatings adhere properly with BlastOne and DeFelsko’s surface profile testing tools. From the PosiTector® RTR for 2D and 3D surface measurements to the SPG gauges for direct profile readings, our instruments offer precise and reliable results. Our range includes burnishing tools, cleaning cards, and replacement probe tips to support accurate testing. Whether working on metal, concrete, or other surfaces, our products are designed to meet the highest industry standards.
For additional support or questions, contact BlastOne or use our live chat feature.
Read More
Adhesion Testing
Air Leak Testing
Calibration
Coating Thickness
Concrete Moisture
Environmental Conditions
Gloss Measurements
Hardness Testing
Inspection Accessories
Inspection Kits
Oven Profile
Pinhole & Holiday Testing
Surface Contamination
Verification Standards
Wall Thickness
Showing all 12 results
-
DeFelsko has created this concrete chip surface comparator as a manual alternative to their PosiTector SPG-TS digital surface profile gauge. These kits include 10 tiles to match the 10 ICRI CSP categories and are available with or without the Technical Guideline booklet. -
The Testex tape process of measuring surface profile has been used for over 50 years. It is a simple, reliable, and repeatable way of determining surface profile parameters. DeFelsko acquired the Testex tape line and incorporated it into their range of instruments, for increased compatibility and greater convenience for inspectors. DeFelsko is now offering updated packaging in 50-piece packs while continuing to offer the legacy roll packaging. NOTE - the profile ranges are not entirely the same between them - their respective ranges are shown under the Product Description tab. Tape options include the following:
- Conventional Testex Press-O-Film Tape grades.
- Use with analog spring or digital micrometers or with the PosiTector RTR H probe.
- Optical Grade Testex Press-O-Film Tape Grades
- Use with PosiTector RTR 3D probe. Provides surface data files (.sdf) that allow both 2D and 3D measurements.
- Conventional Testex Press-O-Film Tape grades.
-
INDRTRTAPEHLDERRecommended best practice when using the PosiTector RTR 3D is to use these specialized Replica Tape Holders. Very easy to use - just affix the replica tape to the holder, and ensure that the compressible foam is located over the hole in the holder. Once adhered, the replica tape can be simply placed into the probe with no concern about migration of the adhesive onto the probe sensors.INDRTRTAPEHLDERRecommended best practice when using the PosiTector RTR 3D is to use these specialized Replica Tape Holders. Very easy to use - just affix the replica tape to the holder, and ensure that the compressible foam is located over the hole in the holder. Once adhered, the replica tape can be simply placed into the probe with no concern about migration of the adhesive onto the probe sensors.
Part Number Purchase Price INDRTRTAPEHLDER $10.00 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$10.00
-
-
The PosiTector RTR family of instruments is DeFelsko's state-of-the-art solution for surface profile measurement and more. Two different probe models are available and selected features are listed below:
- Familiar. Based on the award-winning PosiTector instrument body platform, the RTR probes are easy to master and use.
- Capable. State-of-the-art technology with 2 models as follows:
- PosiTector RTR H. This 2D version measures surface profile using Testex tape just like a spring micrometer, but with the following enhancements:
- Automatically compensates for the thickness of the Testex film backing.
- Using conventional Testex Coarse or X-Coarse tape, the RTR H calculates linearized measurements automatically, without the complicated averaging process required by analog spring micrometers.
- Stores readings which can be uploaded to PosiSoft, Mac, and smartphone software for professional reporting. Of course, you can keep the physical replica tape as well.
- Ready-to-measure. No calibration adjustment required for most applications.
- PosiTector RTR 3D. This 2D / 3D version offers the same features as the RTR H above, but with these extra features:
- Creates a 3D image of the profile and calculates Peak Density, Peak Count and more - a total of 14 common 2D and 3D surface parameters.
- When paired with the Advanced body, the RTR 3D can download high-res .SDF files for further analysis.
- These 3D surface parameters are proving to be as important (if not more so) than traditional surface profile measurements for predicting coating life. Future proof your instrument purchase against changing specifications by investing in the highly capable PosiTector RTR 3D!
- Note: The PosiTector RTR 3D requires Optical grade Testex tape.
- PosiTector RTR H. This 2D version measures surface profile using Testex tape just like a spring micrometer, but with the following enhancements:
- Configurable. Your choice of RTR probe is available separately (for use with existing PosiTector gage / body), or can be purchased as a kit with your choice of Standard or Advanced body.
-
Burnishing tools facilitate accurate and easy use of Testex Press-O-Film replica tape. Multiple types available, as follows:
- Stick-type. Economical plastic, sold in packs of 10, these have 8mm round ends. Use with all types of Testex tape.
- Burnishing ball. Designed to use with optical grade tape, for use with the RTR 3D probe.
- High Accuracy tool. Updated with a spring-loaded ball for the most consistent results. Use with standard Testex tape.
-
INDRTRCLEANRecommended best practice when performing replica tape tests with PosiTector RTR instruments is to thoroughly clean the anvils (test surfaces) before performing the test. These Cleaning Cards are premoistened with alcohol and are excellent for removing bits of adhesive and debris from the anvils. Each new RTR comes complete with 5 cleaning cards and additional quantities are available here as needed, in packs of 20.INDRTRCLEANRecommended best practice when performing replica tape tests with PosiTector RTR instruments is to thoroughly clean the anvils (test surfaces) before performing the test. These Cleaning Cards are premoistened with alcohol and are excellent for removing bits of adhesive and debris from the anvils. Each new RTR comes complete with 5 cleaning cards and additional quantities are available here as needed, in packs of 20.
Part Number Purchase Price INDRTRCLEAN $25.00 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$25.00
-
-
The PosiTector® SPG - DeFelsko's solution for measuring surface profiles on both metal and concrete surfaces - without the need of Testex® tape. This inspection instrument system is capable and configurable, and has the following highlights:
- Familiar. Built on the tried-and-true PosiTector gauge / body platform, using interchangeable probes.
- Capable. Five separate probe designs available as follows:
- PRBSPG. Integral probe for one-handed use. Measures flat blasted steel.
- PRBSPGS. Cabled probe for enhanced ergonomics and/or access to hard-to-reach areas. Measures flat blasted steel.
- PRBSPGOS. Cabled probe for use on convex curved blasted steel (especially pipes).
- PRBSPGCS. Cabled probe for measuring textured coatings and other surface profile applications.
- PRBSPGTS. Cabled probe for measuring concrete profile.
- Configurable. Available as follows:
- Probe only. Use with your existing PosiTector gauge.
- Standard PosiTector body package with choice of probe.
- Advanced PosiTector body package with choice of probe.
- Note: All PosiTector SPG packages come with case, zero plate / shim, calibration certificate, and more.
-
INDRTRPUTTYRecommended best practice when performing replica tape tests is to thoroughly clean the surface before attaching the film to the substrate. This Surface Cleaning Putty is excellent for cleaning steel surfaces of dust and abrasive. One package comes standard with each new PosiTector RTR and additional quantities are available here as needed, in packs of 5.INDRTRPUTTYRecommended best practice when performing replica tape tests is to thoroughly clean the surface before attaching the film to the substrate. This Surface Cleaning Putty is excellent for cleaning steel surfaces of dust and abrasive. One package comes standard with each new PosiTector RTR and additional quantities are available here as needed, in packs of 5.
Part Number Purchase Price INDRTRPUTTY $30.00 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$30.00
-
-

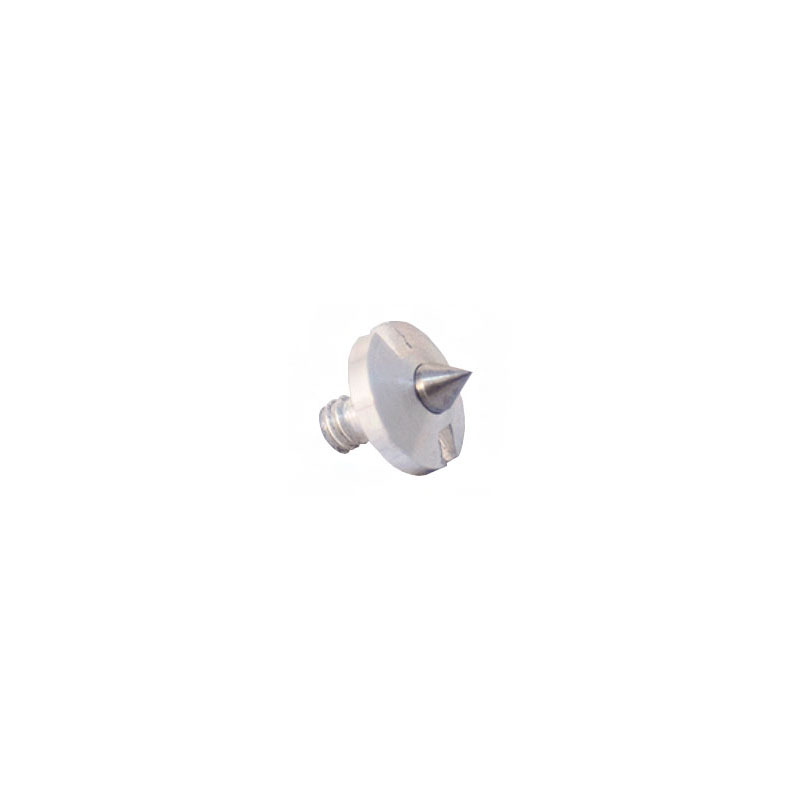

BlastOne offers all accessories and replacement parts for DeFelsko testing instruments. The PosiTector Surface Profile Gauges have replaceable tungsten carbide tips and are available as follows:
- 60° Angle for ASTM (USA) applications, used in the Integral, Standard Cabled, and Convex Cabled probes.
- 30° Angle for AS 3894.5-C (Australia) applications, also used in the Integral, Standard Cabled, and Convex Cabled probes.
- CS Tip for Textured Coatings probes.
- TS Tip for Concrete Surface probes.
-
Measuring surface profile has been done successfully for over 50 years with the Testex replica tape and spring micrometers. DeFelsko acquired the Testex brand and has updated it, now offering Digital as well as Analog options for these micrometers (aka Snap Gages, or Dial Thickness Gages). Various options available as follows:
- Certified. Available in:
- Imperial / Mils
- Metric / Microns
- Digital version is switchable between Mils and Microns
- Non-Certified. Available in:
- Imperial / Mils
- Metric / Microns
- Linearized in Mils
- Package Options. Available as:
- Basic Micrometer kits, including choice of gage, burnishing tool, carrying case, instructions & 1 year warranty.
- Complete kits (aka Replica Tape Kits), including Basic kit above as well as Training Surface Tool, and 1 roll each of Testex Press-O-Film Coarse and X-Coarse tapes.
- Certified. Available in:
-
Keane-Tator Surface Profile Comparator Grit/Slag, Shot, & Sand/Garnet with Illuminated Magnifier 372
Keane-Tator Surface Profile Comparator Grit/Slag, Shot, & Sand/Garnet with Illuminated Magnifier 372
INDSPCWM- Pocket-size field reference comparator
- Used to estimate surface profile roughness by feel (tactile) and/or sight (visual)
- Each comparator has four or five sectors with a know - and marked - surface profile measurement
- Abrasive-specific comparators for:
- grit profile
- sand profile (KTA only)
- shot profile
- Used in accordance with AS1627-4, AS3894-5 Standards (and for ISO comparator ISO8501-1, 2 Standard also)
- Supplied with protective pouch and instructions
Keane-Tator Surface Profile Comparator Grit/Slag, Shot, & Sand/Garnet with Illuminated Magnifier 372
INDSPCWM- Pocket-size field reference comparator
- Used to estimate surface profile roughness by feel (tactile) and/or sight (visual)
- Each comparator has four or five sectors with a know - and marked - surface profile measurement
- Abrasive-specific comparators for:
- grit profile
- sand profile (KTA only)
- shot profile
- Used in accordance with AS1627-4, AS3894-5 Standards (and for ISO comparator ISO8501-1, 2 Standard also)
- Supplied with protective pouch and instructions
Part Number Purchase Price INDSPCWM $450.00 Keane-Tator Surface Profile Comparator Grit/Slag, Shot, & Sand/Garnet with Illuminated Magnifier 372
Part #INDSPCWM
View Product DetailsWeb price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$450.00
-
-

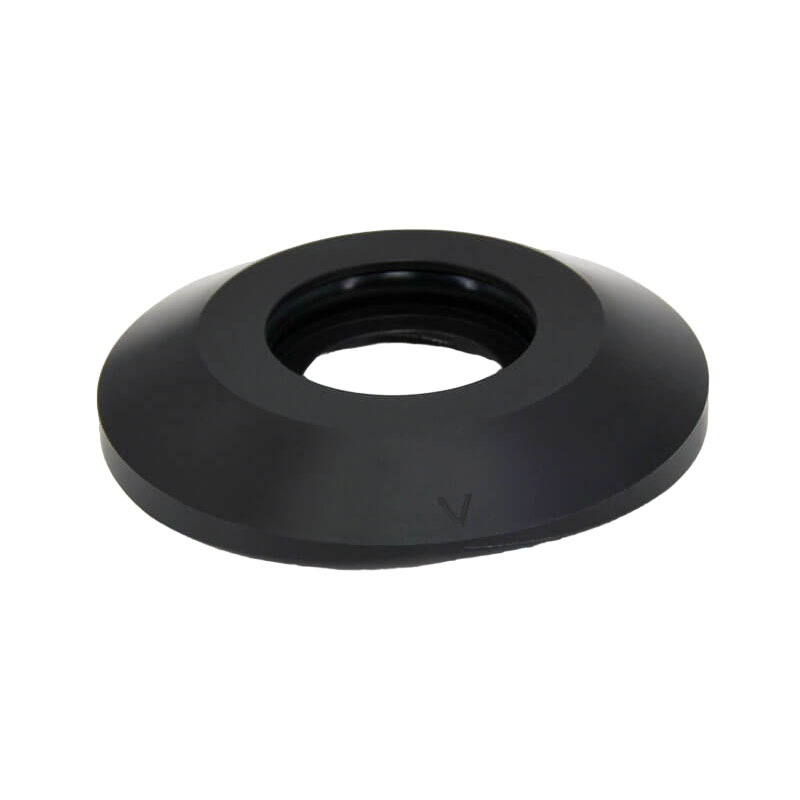

INDSPGOSFOOT
- For enhanced stability on 30-45cm (12-18") OD pipes
- For PosiTector SPG OS only
INDSPGOSFOOT- For enhanced stability on 30-45cm (12-18") OD pipes
- For PosiTector SPG OS only
Part Number Purchase Price INDSPGOSFOOT $45.00 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$45.00
-
BlastOne and DeFelsko offer an extensive range of surface profile testing tools to ensure the quality and durability of coatings on various substrates. Our PosiTector® RTR and SPG instruments provide accurate and reliable measurements of surface profiles, essential for proper surface preparation. These advanced tools include replica tape readers, surface profile gauges, and specialized probes for different applications.
Designed for ease of use and compliance with industry standards, our surface profile testing solutions help you achieve optimal coating performance and longevity.
