Angled Blast Nozzles
ANGLED & BANANA ABRASIVE MEDIA SANDBLASTING NOZZLES
Our angled abrasive media blasting nozzles are designed to provide maximum efficiency and durability, making them the perfect choice for any heavy-duty industrial cleaning application.
One of the key benefits of using high-quality nozzles is that they can significantly improve the speed and effectiveness of your media blasting process. Our angled nozzles are designed to direct the abrasive media at a precise angle, ensuring that it hits the surface at the optimal angle for maximum cleaning power. This means that you’ll be able to clean surfaces more quickly and effectively, saving you time and money in the long run.
In addition to their efficiency benefits, angled abrasive media blasting nozzles are also ideal for special applications. For example, if you’re working on a large surface area that’s difficult to reach with a traditional nozzle, an angled nozzle can help you get into those tight spaces and ensure that every inch of the surface is cleaned. And if you’re working on a surface that’s particularly delicate or sensitive, an angled nozzle can help you control the flow of abrasive media to prevent damage.
General Purpose Nozzles
High Performance Nozzles
Internal Pipe (ID) Nozzles
Short / Compact Nozzles
Silenced / Quiet Nozzles
Tools & Nozzle Thread Adapters
Wet-Blast, Specialty & Other Nozzles
Showing all 7 results
-
Tite-Space nozzles are angle nozzles, designed for use in areas that are especially difficult to access, and feature:- 3/8" NPT Thread in either Male or Female configuration
- Male version has brass threads and requires a minimum opening clearance of 1". This version is 1-7/8" long.
- Female version has steel threads and requires a minimum opening clearance of only ¾". This version is 3-1/8" long.
- These nozzles are often used in conjunction with our Tite Space Invader Blasting Kit, available here
- Angle options include:
- 45° & 60° forward blast
- 90° right angle blast
- 135° reverse blast
- Some options available in double, triple or quad orifices in addition to single.
- Note: Using nozzles with multiple orifices will multiply the compressed air CFM requirement accordingly.
- Stock version uses tungsten carbide lining.
-
- Curved "Banana" Blast Nozzle
- Made from Boron Carbide which is the longest lasting material used for blast nozzles
- Size listed is a #6, which is 3/8" internal diameter
- Has a Medium 3/4" Thread - Requires a special nozzle holder adapter
- Search for “nozzle thread adaptors” to select an adaptor to use with your existing nozzle holder, or contact BlastOne if you want a medium thread nozzle holder.
- Sold Individually
-
Effective solution for blasting in hard-to-reach areas such as:
- Inside of bolt holes
- Inside of close-fitting steel channels
- Difficult access structural steel, such as bridge supports, etc.
- Offers standard extension lengths from 10 to 60 inches, with other options available by special order.
- Can be used with most abrasives
- Attaches to blast hoses with standard 2-prong couplings (not nozzle holders)
- Nozzle is NOT included and shown for illustration purposes only. Requires junior size 3/8" NPT threaded nozzles. Choose the correct one for your application from our Tite-Space nozzle selection here.
- Female version requires only ¾" clearance.
- Male version requires only 1" clearance.
-
Refresh your Tite Space Invader Blasting Kit with replacement repair rods. Comes in various lengths from 12 - 60 inches.
- Durable and long-lasting construction
- 3/8" Schedule 40, NPT threaded on both ends
- Use with Tite-Space Invaders or with Junior size internal pipe blasters
-

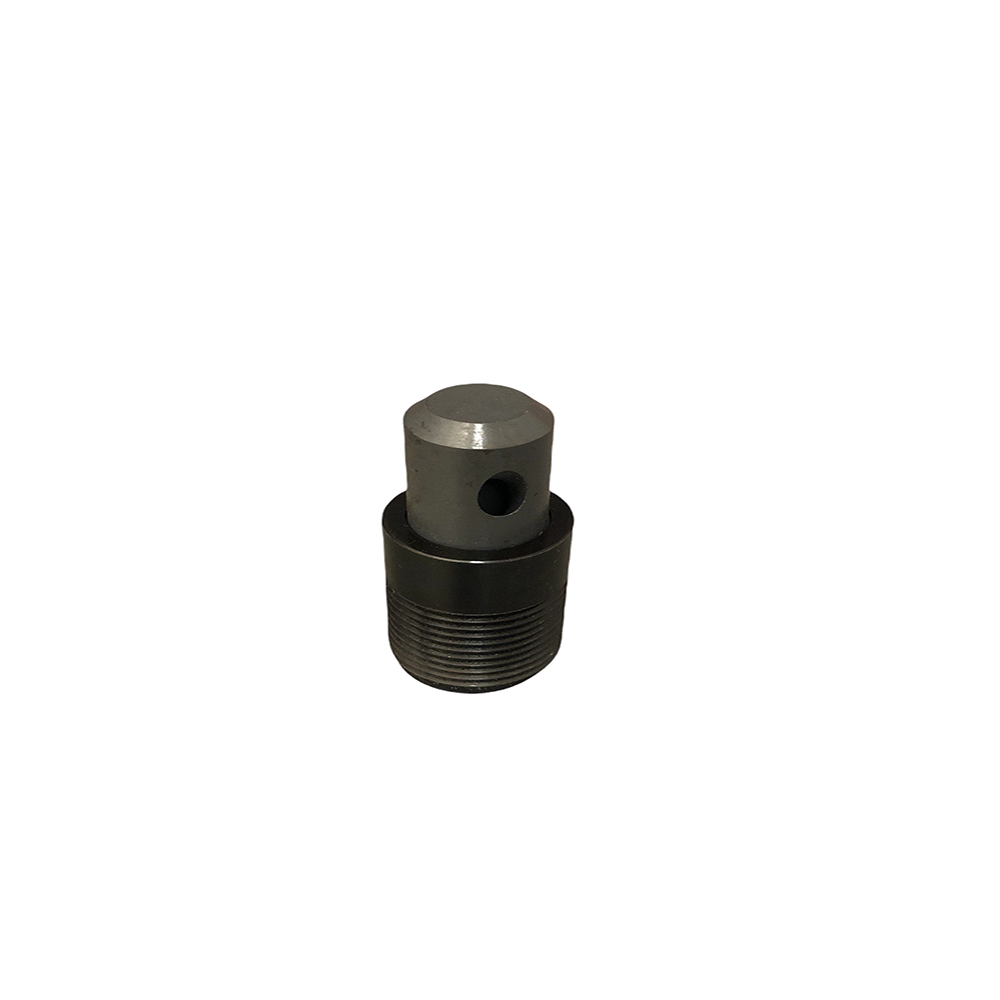

Sized between the Tite Space and the full size nozzles, the ATA series of angle nozzles come standard with ¾" Medium Threads. They are excellent for applications requiring the operator to operate in small areas, especially when paired with a small bore whip-hose. Basic specs are:
- 3/4" (20mm) Medium male thread (other options available by special order). Can be used in standard Fine or Coarse nozzle holders by use of a thread adapter available here.
- 1/2" (13mm) throat entry
- 45° forward, 90° right angle, and 135° reverse blast pattern options available
- Some sizes are available in Double, Triple or Quad orifices
- Note: Using nozzles with multiple orifices will multiply the compressed air CFM requirement accordingly
- Tungsten carbide liner. Extended life liners for large projects available by special order.
- Short 2-1/8" length
-
- Ideal for blasting recesses, pipe internals, behind angles, lattices etc.
- 2" UNC (50mm) coarse Contractor thread 'C' or 1 1/4" NPSM (32mm) Fine Industrial thread 'F'
- 3/4" (20mm) throat entry
- 45° single, double or triple (equi-spaced) side outlets
- Tungsten carbide liner
- **Triple orifice nozzles have triple air & abrasive consumption!
-

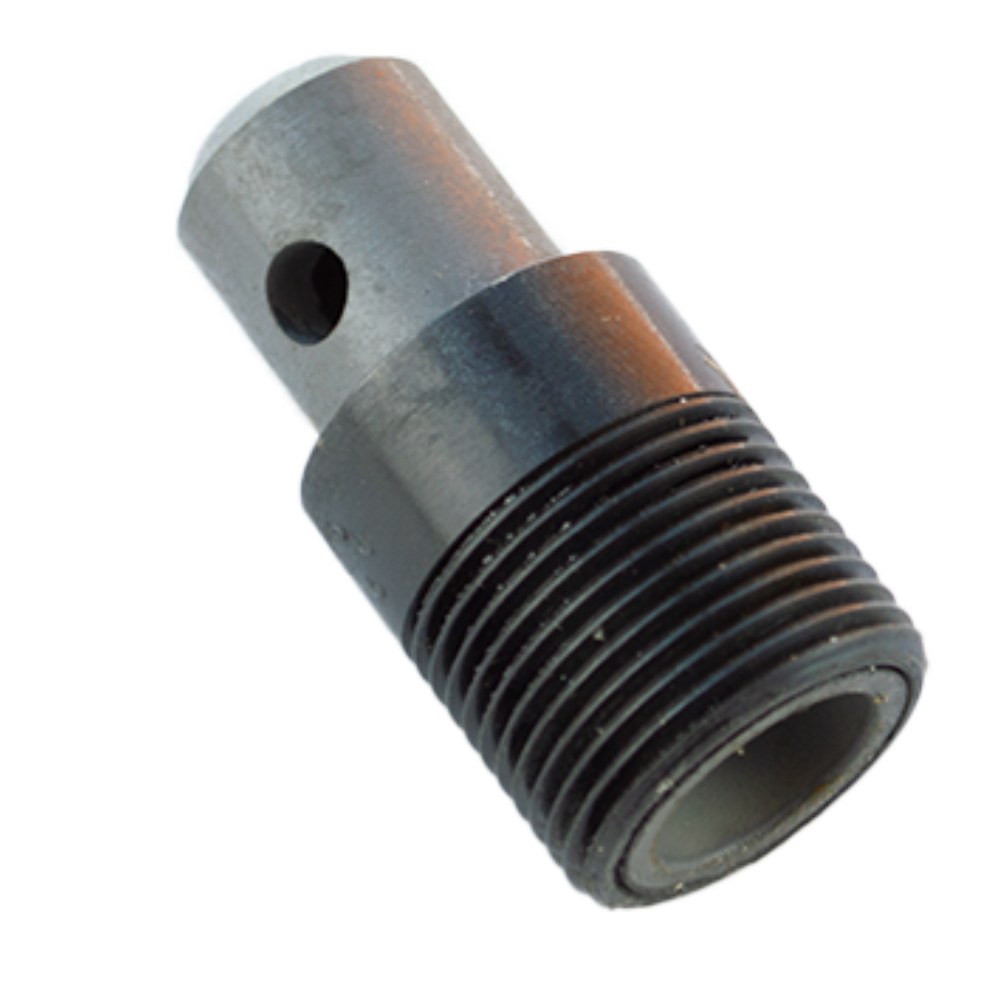

VCBVRA4
- #4 Nozzle
- 90 degree
- Tungsten Carbide
- For Right Angle Workhead
VCBVRA4- #4 Nozzle
- 90 degree
- Tungsten Carbide
- For Right Angle Workhead
