MistBlaster Buying Guide

Revolutionize your abrasive blasting operations with the MistBlaster. Tired of the mess and inefficiency of slurry blasting or the limitations of dustless blasting systems? Discover a superior solution.

The MistBlaster offers a cleaner, more efficient, and environmentally friendly approach to surface preparation. By combining the power of dry blasting with precise water injection, our innovative system eliminates dust while preserving abrasive quality. Experience dust-free sandblasting today.

Experience Dust-Free Sand Blasting with the MistBlaster

Say goodbye to the days of dust-filled work environments and messy blast pots. The MistBlaster is not just another specialized machine; it’s a versatile dry blast pot equipped with a simple but effective water injection system. Unlike slurry blasting or water rings, MistBlaster delivers a clean, efficient blasting experience. Its unique design introduces water vapor into the blast hose only after the abrasive leaves the metering valve, giving you precise control over water usage – as little as one pint per minute. Enjoy the flexibility to effortlessly switch between dry blasting, mist blasting, wash down, and blow down functions.

MistBlaster Single Outlet Blast Pot

Updated and enhanced! BlastOne has refreshed its highly successful MistBlaster and has released the latest generation with even more capability!

Features:

  • 6.5 cuft capacity for up to 90 minutes blasting time between refills

  • 4-in-1 versatility

    Easily switch between: Dry Blast, Mist Blast, Blow Down, Wash Down
  • Water control between mist blasting at 1 pint per minute (1/8 gpm) up to wash down at 2 gallons per minute

  • Pressure-hold technology

  • Dual power deadman offers electric and pneumatic controls

  • Optional skid mount

  • Silenced blow down muffler, deadman cable and battery leads

  • Includes 2” high flow piping for maximum blast efficiency with TeraValve Abrasive Metering Valve

MistBlaster Combo Skid

All-in-one solution. The ultimate convenience for a single operator.

Features:

  • Complete package with MistBlaster, Dryer and Breathing Air System

    • MistBlaster 6.5 cuft Single Outlet Blast Pot
    • Deliquescent Air Dryer 400 cfm
    • Breathing Air System (including Radex Breathing Air Filter and GX4 Carbon Monoxide Alarm)

  • Compact skid-mounted package with

    • Fork pockets for easy transportation
    • Crane rated frame
    • Fits in most standard 8ft truck beds

  • Includes 2” high flow piping for maximum blast efficiency with TeraValve Abrasive Metering Valve

  • On-board 50 gallon water tank (sufficient for 8 hour blast day) allowing you to easily add rust inhibitor

  • Includes Response Deadman Controls, on-board battery and battery leads

  • Industrial grade VBS muffler reduces blow down noise

  • Skid mounted with sturdy frame to protect components

  • Air distribution system: Dual inlet manifold and two auxiliary air outlets

Mega MistBlaster

The ultimate combination between high production using 4 blasters all independently operated.

Features:

  • Massive 160 cu ft capacity with the ability to hold up to 10 tons of garnet

  • Each operator can utilize each function independently of the others

    Easily switch between: Dry Blast, Mist Blast, Blow Down, Wash Down
  • Choice of mount configurations:

    • Highway certified 16k trailer with spare tire
    • Skid mounted
    • Legs only for trailer mounting

  • Maximum productivity, highest flexibility, easiest preparation

  • Includes Response Deadman Controls, on-board battery and battery leads for 4 operators

  • Includes: Halok safety closure, blast timers, lights, dual ladders and provision for overhead storage rack

  • Silent, safe blow down muffler

  • Includes 2” high flow piping for maximum blast efficiency with TeraValve Abrasive Metering Valve

MistBlaster 4-in-1

MISTBLAST

WASHDOWN

DRY BLAST

BLOW DOWN

4 Immediate Benefits of Suppressing Dust

BlastOne’s MistBlaster technology provides versatility for all project scenarios.

Improves visibility and safety for work crew

Dust generated from abrasive blasting can significantly impair visibility, creating hazardous working conditions. Workers may struggle to see potential hazards, leading to increased risks of accidents and injuries. The MistBlaster’s advanced dust suppression technology effectively clears the air, providing operators with a clear line of sight to their work area. This enhanced visibility allows for more precise and controlled blasting, reducing the likelihood of errors and damage to surrounding surfaces. Moreover, the improved visibility contributes to a safer work environment by enabling workers to identify and avoid potential hazards promptly.

Beyond safety, the MistBlaster’s dust suppression capabilities contribute to a healthier work environment. By reducing dust exposure, the risk of respiratory ailments and skin irritations among workers is significantly lowered. A healthier workforce translates to increased productivity and reduced downtime due to illness. By investing in the MistBlaster, businesses not only prioritize the safety of their employees but also cultivate a more productive and efficient work environment.

Reduces nuisance dust complaints from neighboring trades, houses, and businesses

Dust-related complaints and legal battles can be costly and time-consuming for any business. The MistBlaster’s ability to drastically reduce dust generation is a game-changer. By minimizing dust emissions, contractors can operate with greater freedom and efficiency, avoiding costly project delays and disruptions caused by neighbor complaints. Say goodbye to the stress of overnight blasting shifts mandated by noise ordinances. The MistBlaster empowers you to work smarter, not harder, while maintaining a positive relationship with your community.

Reduces need and expense for containment

Traditional abrasive blasting methods often require extensive containment measures to control dust dispersion. These containment systems can be costly to install, maintain, and remove. Additionally, they can be time-consuming to set up and take down, reducing overall productivity. The MistBlaster offers a more efficient and cost-effective solution by significantly reducing dust generation at the source.

By minimizing the need for containment structures, businesses can save on labor, material, and equipment costs. The MistBlaster also allows for faster job completion as there is less time spent on setup and cleanup. This increased efficiency can lead to higher profits and improved project timelines. Moreover, reduced waste from containment materials aligns with sustainability goals and demonstrates a commitment to environmental stewardship.

Keeps your crew physically cleaner

Exposure to dust generated from abrasive blasting can lead to a variety of health issues, including respiratory problems, skin irritation, and eye discomfort. These health concerns can impact employee morale, productivity, and overall job satisfaction. The MistBlaster’s advanced dust suppression technology creates a cleaner and healthier work environment for crews. By reducing dust exposure, the risk of these health issues is significantly lowered.

A more comfortable work environment can lead to increased job satisfaction and employee retention. Happy and healthy workers are more likely to be productive and engaged in their work. Additionally, by investing in the well-being of their employees, businesses can enhance their reputation as a responsible and caring employer. The MistBlaster is not only a tool for improving air quality but also a strategic investment in employee satisfaction and overall business success.

Why MistBlast?

mistblaster icons (2) - Copy

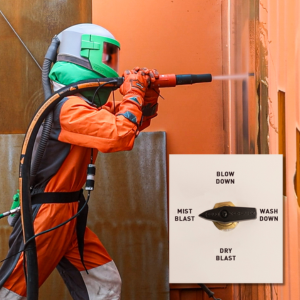

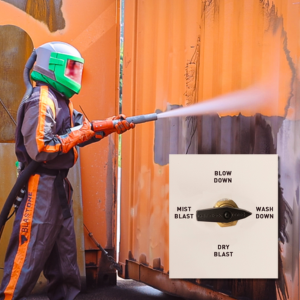

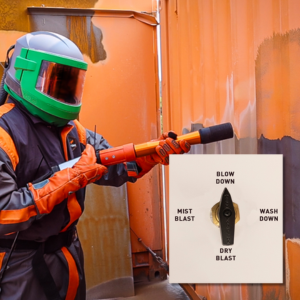

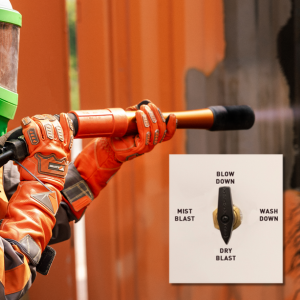

EASILY SWITCH BETWEEN 4 FUNCTIONS

Mist Blast, Dry Blast, Wash Down & Blow Down

MistBlaster Icon

POT STAYS DRY

Water vapor is introduced to the abrasive in the blast hose, not the pot. Your pot stays dry!

mistblaster icons (2)

USES LESS THAN 1 PINT PER MINUTE

vs older systems that waste up to 2 gallons per minute

MistBlaster Icon

AVAILABLE IN 3 DIFFERENT PACKAGES

Single Outlet Blast Pot (6.5 cu ft), Combo Skid with Air Dryer, & 4-Outlet Mega MistBlaster

MistBlaster Icon

AVAILABLE FOR RENT, PURCHASE OR RETROFIT

MistBlaster Icon

SIMPLE TO USE

1 lever and valve allows you to switch back and forth easily

Wet Blasting Equipment Comparison Guide

Discover the best wet blasting equipment for your specific needs. Learn how to boost efficiency, improve surface prep, and achieve superior coatings with our expert comparison guide.

VERSATILITY FOR ALL SCENARIOS

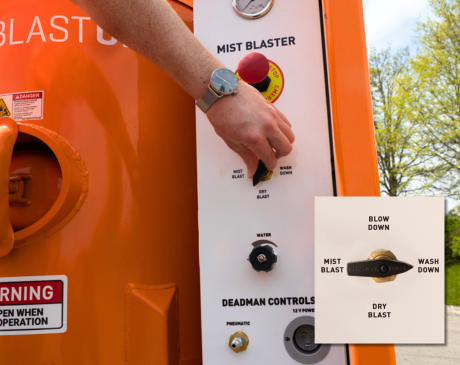

1 LEVER CONTROLS 4 FUNCTIONS

Experience unparalleled versatility with the MistBlaster’s intuitive one-lever control system. Effortlessly switch between mist blasting, dry blasting, wash down, and blow down functions with a simple lever adjustment, streamlining your workflow and maximizing productivity.

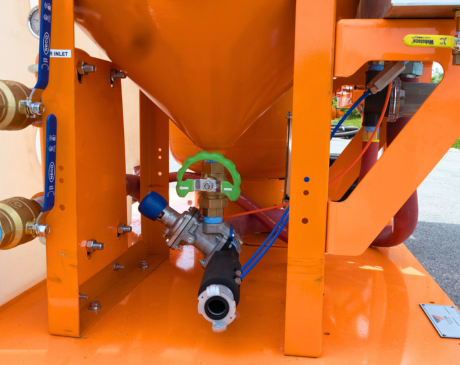

KEEPING YOUR ABRASIVE DRY

Preserve abrasive integrity with the MistBlaster. By introducing water vapor only after the abrasive leaves the metering valve, we ensure your abrasive stays dry for optimal performance. Enjoy the flexibility to switch between dry and mist blasting applications throughout your day without compromising material quality.

Never deal with a big sloppy mess on the ground or inside your blast pot ever again!

4 INDEPENDENT BLASTERS*

Each blaster can independently use any of the 4 available functions without interfering with the other blasters.

Example:
2 blasters dry blast inside tank while 2 blasters mist blast outside tank

*When using the Mega MistBlaster

MistBlaster Info & Troubleshooting Videos

MistBlaster Family Overview

MistBlaster Features & Benefits

MistBlaster – Operation, Maintenance, & Troubleshooting

MistBlaster Selection Guide

MistBlaster technology has been configured into a family of products – built with your needs in mind. Depending on your project, BlastOne has you covered.

All units are available for purchase or rental.

Model
Single Outlet Blast Pot
Combo Skid - ADS Air Dryer
Mega MistBlaster
Part Number
MB25000
MB60000
MB70000
Pot Volume
6.5 cu ft
6.5 cu ft
160 cu ft
Water Tank
N/A
50 gal
N/A
Air Dryer
No
Yes
No
Breathing Air Included
Optional
Optional
No
Outlets/Operators
1
1
4
Input Power
Dual Power (Electric & Pneumatic)
Dual Power (Electric & Pneumatic)
Electric
Max Compressed Air Flow
950 cfm
950 cfm
1600 cfm
Max Blast Presure
150 psi
150 psi
150 psi
Water Dose
0-2 gpm
0-2 gpm
0-2 gpm
Dimensions
42” x 48” x 58”
72” x 47” x 60”
109” x 99” x 125”
Weight - Dry
548 lbs
2050 lbs
5500 lbs

CASE STUDIES

Reduce Dust & Improve On-Site Visibility

Client: MCMC Linings

Location: Columbus, OH Technology Day

Equipment: MistBlaster

Increase On-Site Blasting Productivity

Client: BrandSafway

Location: Columbus, OH Technology Day

Equipment: MistBlaster
